Shinyei - Model EPS-02Ev3 - Electromagnetic Field Visualization System

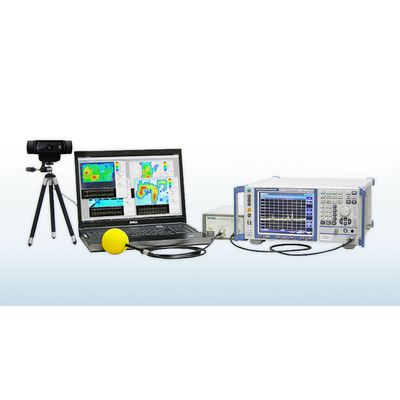

Three-Dimensional Indication (Time, Frequency, Amplitude) Simplifies EMC/EMI Debugging; EPS is a EMC/EMI debugging tool enabling designers to rapidly perform pre-measurement, failure point identification, and improvement efficiency confirmation in EMC/EMI countermeasure process of product design. How does it work? The software detects locations of probes by color discrimination through camera’s image sensors*, real time analysis measured signal frequency, shows a heat map by overlapping electromagnetic field strength and real images of measured objects.
Most popular related searches
- A real-time diagnostic tool supports EMC/EMI debugging.
- Fast visualize EMC/EMI problems.
- Enables easy comparison of countermeasures before and after.
- Capable of measurement from entire products to single components.
- Factor-editor function provides correction of antenna characteristics, cable loss and preamplifier.
- User friendly compact design.
- Customer supplied spectrum and probes acceptable (Please consult)
| Parameter | Specification / Function |
| Frequency range | 100 kHz ~ 3 GHz *Depends on the electromagnetic field probe specifications (The above is for ETS probes) |
| Measurement unit | dB μV?dBm |
| Sensor/probe | φ 60 / 30 / 10 mm loop coil (magnetic field), φ 36 mm ball (electric field), φ 6 mm tip (electric field) Total 5 types *Depends on electromagnetic probe specifications (Probe by ETS-Lindgren) |
| Probe cable length | 2m(N(P)-BNC(P) (Coaxial connector cable) |
| Data recording method | Single / Free Run /Max Hold / Max Peak Data* |
| Auxiliary function | Save / load / export / comment input / factor re-read / camera image retake / up-down & right-left inversion of camera image / ghost display of camera image / Screen enlargement-reduction |
| Compatible operating system | Windows 7 / 10 |
| System configuration | Electromagnetic field probe (PN 7405) , BNC (P) -N (P) connector coaxial cable (02-00150A), Three Color Probe Head Cover (03-00111A), RF preamplifier (00-00019A), Spectrum analyzer, Control PC |
| accessories | LAN cable, Camera, USB cable extension 2 m for camera, Tripod for camera, Software, USB protect key, Instruction manual |
