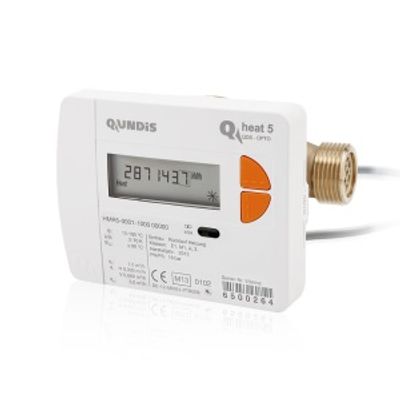

QUNDIS - Model Q heat 5 / Q heat 5.5 -Electronic Heat Meter
FromQUNDIS GmbH
Compact and versatile. The Q heat 5 / Q heat 5.5 electronic heat meter is fitted with an IrDA interface as standard. It is available as a screw-type version and a measuring capsule version for the connection interfaces IST (G2″ – Ista), A1 (M77 x 1,5 – Allmess) and TE1 (M62 x 2 – Techem). If data transmission is to be implemented by radio (Q AMR, Q walk-by) or by cable (Q M-Bus), the device can simply be retrofitted with an add-on module.
Most popular related searches
For special applications such as water heating we have equipped Q heat 5 / Q heat 5.5 with a fast measuring cycle. All volume meters are available in the established flow dimensions of 0.6 / 1.5 and 2.5 m3/h.
The optimized display loop: After pressing any key in sleep mode the display of the Q heat 5 heat meter now shows the current reading, the scheduled readout day and the scheduled readout value in a loop. This loop is repeated 10 times. In order to simplify readout operations, a display test separates the display of the current value from the scheduled readout value. Readouts by tenants or untrained personnel have now become much simpler.
Heat meter variants
- Screw-type 80 mm
- Screw-type 110 mm
- Screw-type 130 mm
- Measuring capsule Ista IST (G 2")
- Measuring capsule Allmess A1 (M77 x 1,5)
- Measuring capsule TE1 (M62 x 2)
Nominal flow rates
- qp 1,5 m³/h
- qp 0,6 m³/h and 1,5 m³/h
- qp 2,5 m³/h
- qp 0,6 m³/h, 1,5 m³/h and 2,5 m³/h
- qp 1,5 m³/h
- qp 1,5 m³/h and 2,5 m³/h
