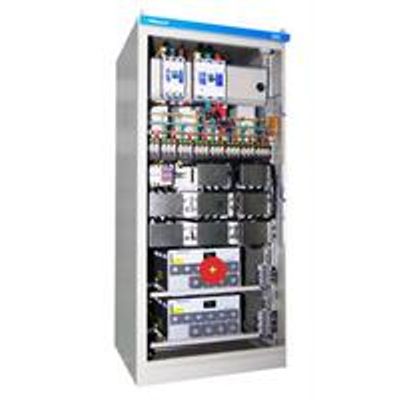

Sinexcel - Model SVGC -Electronic Power Switch
The SVGs in the SVGC show the advantage of the electronic power switch. Fast response is implemented by SVG modules.SVG reaction time
Excellent compensation performance
- Traditional reactive compensation may cause over- or under-compensation.
- In SVGC, LCscanimplementstepwiseswitching compensation
- SVG modules can cover all blind points and implementstepless switching
Realize more implement flexible LC and SVG applications
- Power components in the SVGC solution (SVG modules or LCs)
- can be flexibly combined to realize：SVGC compensation between -1 and +1
- Adjustable pricing of the SVGC solution
- SVGC solutions for different industries
Impressive Compensation Effect
SVGC and LC can be controlled by ICMS at the same time.
Compensation effect sequence diagram when LCs and SVGs are used together (LC-compensation capacity 30kvar, SVG- 100kvar）
100～200ms：
When the load` reactive rises sharply and LCs cannot respond promptly, SVGs will instantly respond and compensate the system reactive.
200～500ms：
When LCs start compensation, SVGs will instantly lower the compensation capacity.
900～1000ms：
When load`s reactive slides sharply and LCs fail to reduce capacitors used, SVGs will instantly generate a reverse compensation reactive to offset the LCs` excessive capacitors.
1000ms～：
When LCs reduce the excessive compensation capacity, SVGs will instantly track changes to the system reactive and eliminate the residual reactive in the system.
