Orion Fans

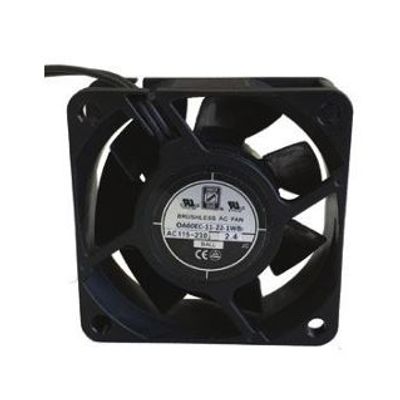

Orion Fans - Model OA60EC-UR-1WB - Electronically Commutated (EC) Fans
FromOrion Fans
Frame PBT, UL 94 V-0 Plastic Impeller PBT, UL 94 V-0 Plastic Connection 2x Wire Leads, 22 AWG Motor AC-DC Energy Saving, Electronically Protected Bearing System Ball Bearings Dielectric Strength 1500VAC/min,
Most popular related searches
- Part Number OA60EC-UR-1WB
- Rated Voltage (Volts AC) 115 / 230
- Voltage Range (Volts AC) 95 ~ 265
- Frequency (Hertz) 50 / 60
- Input Power (Watts) 2.1 ~ 2.4
- Locked Rotor Current (Amps) 0.09 / 0.05
- Rated Speed (RPM) 3950
- Max Airflow (CFM) 19.5
- Noise Level (dBA) 31
- Max Static Pressure (“ H2 O) 0.17
