Bloomy - Model cUTS - Electronics Functional Testing Device

SHARE

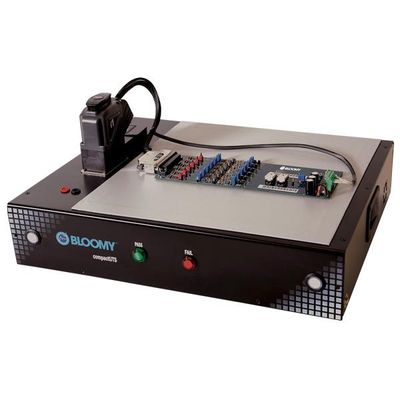

Get the essentials of measurement automation to power tests of simpler PCBAs and subassemblies. compactUTS (cUTS) is a cost-effective platform for automating manual tests of devices with fewer than fifty cable-accessible test points in manufacturing environments with moderate production volume. DUT-specific electrically keyed cables make changeover quick and easy.

Most popular related searches
power testing
power test
cable test
cable testing
power automation

compactUTS is best suited for:

  • Printed circuit board assembly (PCBA) functional test
  • Subassembly functional test
  • Electronic product manufacturers
  • CM and EMS service firms
  • Defense/aerospace contractors
  • Medical Device manufacturers

Electronics manufacturing needs low-cost automated mixed-signal functional test (FCT) for assemblies that justify automation over manual processes. We created the compactUTS (cUTS), for FCT of simpler PCBAs and subassemblies, where the signals to test are available by cable connections.  Powered by NI USB instrumentation, a robust VPC i1 mass-interconnect jack and our own power control and switch matrix electronics, the cUTS is driven by a standard Windows PC or notebook computer that runs test procedures developed with our Universal Test System software suite of NI TestStand and LabVIEW modules. You can also develop your own software using the included LabVIEW drivers or Windows DLL. Connections to devices under test are described in the Connections tab above.

Instrumentation
NI USB-4065 Digital Multi Meter (DMM)
Resolution: 6 1/2 digit, 22-bit
Functions: VDC, IDC, VAC, IAC, 2-wire resistance
NI USB-6341 X-Series Data Acquisition
Analog Input: 16 SE / 8 differential
+10V, 16-bit, 500kS/s
Analog Output: 2 SE
+10V, 16-bit, 900kS/s
Digital I/O: 8-ch, TTL, bi-directional, 1MHz
Counter/Timer: 4-ch, TTL, 100MHz
Mux / Matrix Switching
Topologies: Two 2x16 1-wire matrix
Two 2x8 1-wire matrix
Switch Ratings: 37VDC, 0.5A; 10W max., 1MHz bandwidth
General Purpose Relays
Relay Configuration: Two SPDT, 30VDC @ 5A
Fixed Power Supplies
Quantity: Up to 3
Power Options: 5, 12, +15, 24; up to 5A each
Control: Independent enable relays

Communications
Number of Ports: 2
Port Options: RS-232, RS-422/485, CAN, SPI, I2C

Interfaces
Mass Interconnect: VPC i1, 160 pin
Programmable Indicators: 1 red LED
1 green LED
Programmable Pushbuttons: 2x momentary
Manual Probes: External DMM banana jacks
USB: 1x USB-B In (control)
1x USB-A Out
Grounding: USB wrist strap

Physical
Dimensions: 20” W x 16.25” D x 4.25” H
Weight: 25 lbs
