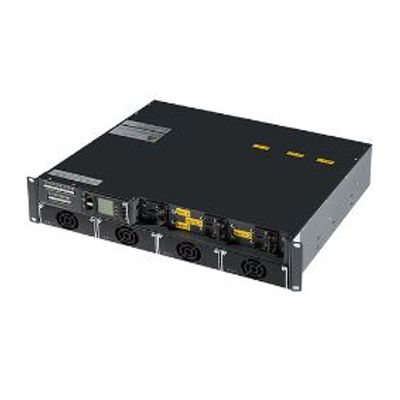

Smart - Model SYS E2121300R48 - Embedded Power System
Dry contact use front access and front operation.AC input and DC output use rear access and rear connection. With compact design, easy installation. Two levels Low Voltage Disconnect (LVD) protection. Two battery MCBs. Compatible with rectifiers of the same size.
Most popular related searches
high power density
voltage regulation
voltage regulating
battery monitor
voltage regulator
battery monitoring
power factor
UPS system
low voltage protection
low voltage level
- Input AC Input 85Vac-300Vac
- Output Output Voltage -53.5V Rated output voltage
- Input Current ≤12A (Per rectifier)
- Frequency 45~65Hz
- Voltage Regulation ≤±1%
- Current Sharing ≤±5%
- Efficiency ≥92%
- Ripple and Noise ≤200mV Peak-Peak
- Psophometric Noise ≤2mV
- 19’’2U sub-rack, easy to be embedded into all standard telecom equipment
- Up to 8kW system capacity
- Up to 0.99 power factor Intelligent fan-cooling Rectifier modules hot-swap
- N+1 rectifier module redundancy
- Advanced batteries monitoring and management
- ECO mode
- High power density
