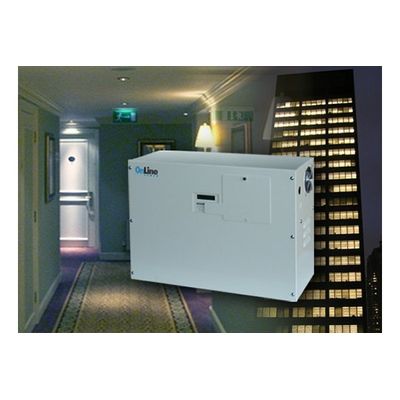

OnLine Power - Emergency Lighting Inverters

FromOnLine Power

SHARE

200, 300, & 490 Watts. ETL Listed to UL924 and UL1778. Incandescent, Fluorescent, HID, HPS, LED. Small foot print with front access. Pulse Width Modulated (PWM). Double Conversion, "no break" online system for all applications and lamp types. Bright function indicators for rapid identification of system status. Enhanced protection utilizing latest TVSS technology. Optional RS-232 and USB communication port with monitoring software. Optional SNMP/Web card.

Most popular related searches

battery discharge

voltage regulation

voltage regulating

voltage regulator

frequency inverter

battery maintenance

battery temperature

Power Rating : 200, 300, and 490 Watts
Input Voltage : 120V ±10% or 270V
Output Voltages : 120V or 277V
Output Frequency
(Inverter Operation) : 60Hz ± 4Hz
Output Voltage Regulation : ±2% for all loads and for battery discharge mode
Output Wave Form : Sine-Wave, THD < 3% at linear load
Output Protection : Current limiting and short circuit protection
Battery : Sealed maintenance-free lead acid
Recharge Current : Recharge time per UL 924

Humidity : 0 - 95% RH w/ no condensation
Operating Temperature : UPS: 0° to 40°C. (32° - 104°F)
Battery: 20° to 25°C. (68° - 77°F)
Higher temperature batteries are available for special order.
Storage Temperature : -20° to 60°C. (-4° - 140°F)
Altitude : Up to 10,000 ft
