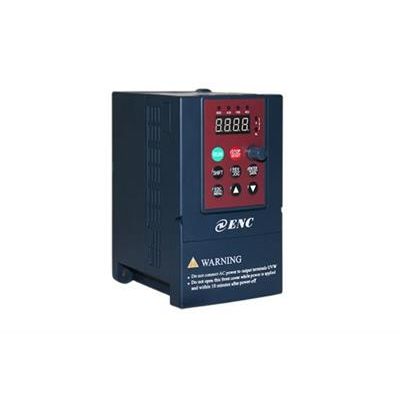

ENC - Model EDS800 Series -Mini Frequency Inverter
EDS800 series mini frequency inverter with small volume, 8.9 cm width, 14.85cm height, 11.25 depth.
Classic applications:
Suitable for food machine, wire drawing machine, printing machine, industrial air condition, textile machine, water supply device & allied, plastic, chemical fiber, color steel tile, ceramic production line & allied etc.
Compact size
8.9 cm W X 14.85cm H X 11.25cm D
Convenient operation
Keypad with potentiometer can lead out to control speed, inbuilt brake resistor, fastener lower cover without screw driver, inbuilt programmable relay, inbuilt 16 steps speed.
Abundant I/O interface with multiple control
4-20mA/ 0-10V analog input/output channel, impulse quantity output/outout, switch quantity output/ output interface, 485 serial form independent network, isolation relay output terminal can connect out to 220VAC/0.5A ac or dc load.
Strong function with wide application
Button can be partly or totally locked, traverse function, simple PLC function, constant pressure water supply, V/F self-defined function, timer/counter function, dc brake function.
- Keypad with potentiometer can lead out to achieve button partly or totally lock (potentiomerter will not locked)
- Standard RS485 interface can form inverter network independently and inverter can be setup to be host or salve.
- impulse/ analog input output channel
- 16 steps speed control with multiple operation command/ command given channel.
- With isolation relay output terminal can connect out to 220VAC/0.5A ac or dc load.
- With textile traverse function to be widely used to various textile device.
- Inbuilt user timer/ counter.
