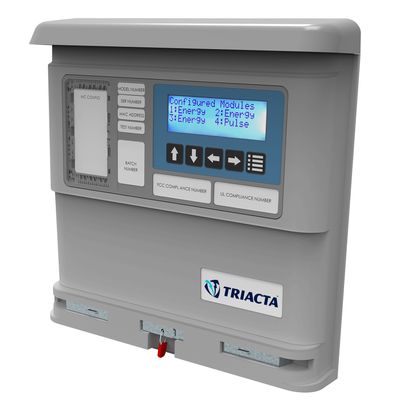

Triacta - Model GATEWAY 3000 - Energy Management Meter

• Accuracy: ANSI C12.20, Class 0.5
• ‍Electrical Inputs: 12, 24, 36, or 48
• ‍Configuration: Any approved combination of single, two, or 3-element meter points
• CTs: 333mV split-core CTs
• Voltage: 2 VRef, 300V max
• ‍Pulse Inputs: Up to 48

Device Configuration

• Any approved combination of single, two, or 3-element meter points

Supported CTs

• 333mV solid-core CTs

Voltage Connections

• 120V to 277V service voltages

Communication Options

• Ethernet (native)

4-quadrant Meter Measurement (Total and Per Phase)

• Active, Reactive & Apparent Power
• Peak W and VA Demand
• PF and phase angles
• Irms, Vrms

Additional Features

• Up to 48 pulse inputs to connect other metering devices
• Dual Service voltages — up to 277V with no external PTs
• On-board Web server and large 4x20 Liquid Crystal Display for local readings
• Multi-homing for reporting to multiple management services
• Innovative, 2-part meter and meter base design — sealable for tamper-evident compliance
• Integrated self-shorting CT connection modules
• Built-in WIFI Access Point
• Cloud-based meter management

AMR via FTP Data Push Over IP or (optional) MODEM

• Plain text CSV file
• Measurement Interval: 1 to 60 minutes
• Reporting interval: once/day or every N minutes

Logged Measurements for AMR (Interval and Register)

• Wh delivered & received
• VARh delivered & received
• VAh
• Peak W & VA Demand
• Present W & VA Demand
• Peak Current
• Vrms

Ethernet Interface

• 10/100BaseT Full Duplex
• DHCP Client or static IP address
• Passive FTP port 21
• NTP port 123
• Modbus TCP/IP port 502
• BACnet IP port 47808
• HTTP port 80

WIFI Access Point

• 802.11 b,g,n 2.4 GHz

Other

• BAS Integration bia BACnet IP, Modbus TCP/IP
• On-board Web server and Liquid Crystal Display for local readings
