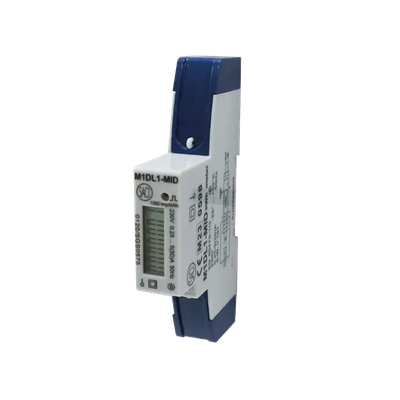

SACI - Model M1DL1-MID -Energy Meter
The energy meter M1DL1-MID direct single-phase meter is also an analyser, measuring several parameters of a single-phase system. It has MID certification for active energy, it is not bi-directional. The measured values can be shown on the display.
Most popular related searches
Parameters
- Active power: Class B
- Active energy: Class 0.5
- Power factor: Class 0.5
- Current: Class 0.5
- Voltage: Class 0.5
Features
- Auxiliary voltage: Self powered
- Material: PBT, PC
- Mounting: DIN rail
- Screen: LCD
- Resolution: 5 digits + 2 decimal
- Digital outputs: Verification LED 1000 Imp/kWh
- Impulse outputs: SO 1000 imp/kWh
- Terminals: Screw
Standards
- EN 50470-1
- EN 50470-3
- EN 62053-23
- DIN 43864
- EN 61010
Input
- Rated voltage (Un): 230 V AC
- Voltage measurement range: 230 V ± 20%
- Rated current: 0.25 – 5 (50) A
- Current measuring range: 0 – 100 % IMAX
- Starting range: 20 mA
- Frequency: 50 Hz
- Network: 1P2W
- Burden: < 8 VA, < 0.4W
Environment
- Protection degree: IP 51
- Electromagnetic environment: E2
- Mechanical environment: M1
- Average relative humidity: ≤ 75%
- Maximum relative environment: ≤ 95 % no condensation
- Operating temperature: – 25 / + 55ºC
- Storage temperature – 25 / 70ºC
- Net weight: 0,1 kg
