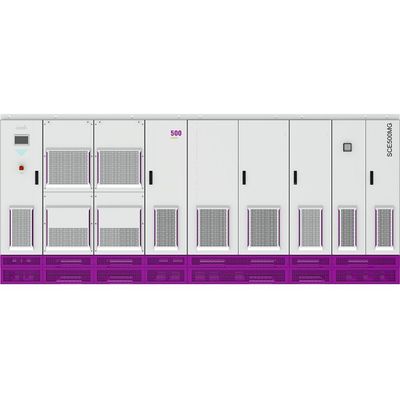

Destin - Model SAVEEN MG - Energy Micro Grid Device
FromDestin Power
Capacity(GI): kVA 250 / 500. AC input; Rated voltage V380 : (± 10%). Frequency Hz50/60. Connection phase 3phase 4wire. AC Output (Load). Rated voltage v 380(± 10%). Frequency Hz 50/60. Connection phase - 3phase 4wire.
Most popular related searches
PCS(GI) :
- Rated voltage : V : 380(± 10%)
- Frequency : Hz : 50/60
- Phase : - : 3phase 4wire
- Power factor (©rated) : - : >0.99
- cos range : 0.7-1
- Voltage THD : % : <3
- Voltage unbalance : % : <3
- Efficiency : % : 96.5
- Transfer Time : ms : <4(60Hz)/<5(50Hz)
- DC Input (Battery) : Operation range : V : 570 - 830
- etc : Cooling Method : - : Forced Air Cooling
- Ambient Temperature : t : -10- +40
- Max. height above sea-level : m : <1000
- Humidity : % : 0-95PCS(GI) :
- Rated voltage : V : 380(± 10%)
- Frequency : Hz : 50/60
- Phase : 3phase 4wire
- Power factor (©rated) : - : >0.99
- cos range : 0.7-1
- Voltage THD : % : <3
- Voltage unbalance : % : <3
- Efficiency : % : 96.5
- Transfer Time : ms : <4(60Hz)/<5(50Hz)
- DC Input (Battery) : Operation range : V : 570 - 830
- etc
- Cooling Method : - : Forced Air Cooling
- Ambient Temperature : t : -10- +40
- Max. height above sea-level : m : <1000
- Humidity : % : 0-95
