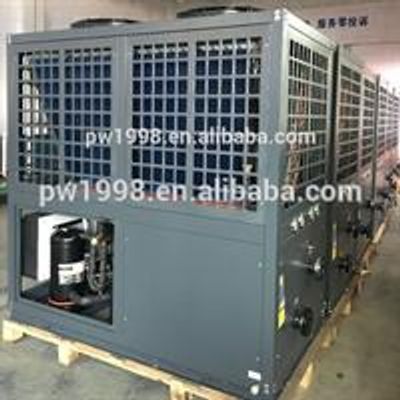

PowerWorld - Model PF100-KFRLN -Energy Saving Air Source Heat Pump

• Base frame and external panels are made of galvanized sheet.
• High efficiency compressor with R407c Refrigerant.
• Touch design LCD control panel, and the control signals are easier to be transferred to the control system;
• Openable cabinet door design for faster and simpler checking and maintenance
• Well heat insulation inside the unit to increase the COP.
• Exterior rotor fan ensures lower noise and vibration
• Eight surfaces cabinet design for lovely outlook and sharp edges reduction
• High quality copper tube coils constructed of outer thread technology
• Automatic defrosting function included.
• Clock & Timing on/off function.
• General testing and operational test carried out for every unit before package in the factory.

• Working at:-7C to 45C
• For house heating&cooling and hot water
• Max outlet water temperature: 60C
• Five working mode

EVI air source heat pump (Trinity) has following important features:

1. Working air temperature range:-7℃ to 45℃
2. Max outlet water temperature: 60℃ when heating
3. Min outlet water temperature: 8℃ when cooling.
4. Five working mode are changeable.
5. Copeland Enhanced vapor injection (EVI) technology scroll compressor
6. R407C refrigerant
7. Linkage function of heat pump ON/OFF controlled by external controlling system

Application:
air source heat pump (Trinity) is designed for house heating, cooling and hot water. User can change the working mode by operating wired panel of controller. Compressor start/stop according to hot water temperature and A/C return water temperature. Hot water circulating water pump start/stop according to hot water tank temperature, A/C water circulating water pump is non-stop.
