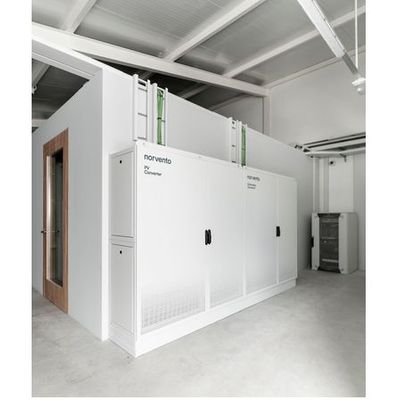

Norvento Gridmaster - Model nGM -Energy Storage Converter
nGM simplifies the design, integration and start-up of micro-grids and distributed generation systems with energy storage.
Converter and advanced control system
Norvento Gridmaster Converter (nGM) is an innovative and versatile platform of converters for energy storage, able to operate while connected to the grid and in weak grids (on-grid), or in isolated systems or micro-grids (off-grid). In addition, it incorporates an advanced control system to get the most out of the storage systems.
Modular and scalable
nGM is a modular system that allows one to adapt to the various requirements of power and energy of any installation, from small industrial installations to large micro-grids
From 50 kVA to 2000 kVA.
- Standard modules with power outputs of 50 kVA, 100 kVA and 200 kVA which can be set up in-line.
- Adaptable AC and DC distribution modules.
- With transformer and without transformer
- Autonomous power modules that allow one to increase the reliability of the entire system.
- Control of the micro-network
- Regulation of voltage and frequency
- Immediate coupling of electricity generators
- Control in the event of load imbalances
- Behaviour in the event of short-circuits and failures
- Monitoring
DC storage intake
- DC Voltage range 540 V … 850 V
- Configurable number of DC intakes
- Communication with BMS Modbus, CAN, Ethernet
AC Output
- Nominal power output 50 kVA…2000 kVA
- Nominal voltage: 400 V/480 V
- Nominal frequency: 50 Hz / 60 Hz
- Overload capacity (as trainer) Programmable
Cooling method
Power venting
Interface with other elements of the micro-network/installation
Modbus, CAN, Ethernet
Monitoring
Ethernet, Web, App
