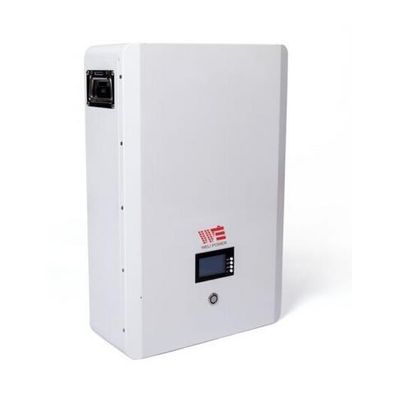

Power Wall - Model WP48100 - Energy Storage Lithium Iron Phosphate Batteries

Use safer lithium iron phosphate batteries

Integrated Intelligent Battery Management System (BMS):

• Prevent overcharge, overdischarge, and high current inside the battery to ensure battery safety and reliability.
• Balance each battery to extend battery life.
• Intelligent monitoring, remote measurement, remote communication, RS485 remote control

Wall hang mounted installation

• With LCD display to display detailed battery parameters
• match with the market mainstream inverter
• Mainly used in home energy storage system

Electrical Characteristics 48v (15S1P module)

• Nominal Voltage: 48V(15S1P module)
• Nominal Capacity@0.2C: 100Ah
• Continuous Discharge Power@50%SOC: 4800W
• Cycle Life: ≥2500 Cycles @80%DOD,0.2C/0.2C
• Months Self Discharge: ≤5.0% per month at 25?
• Commnication port: RS485/CAN

Electrical Characteristics 51.2v (16S1P module)

• Nominal Voltage: 51.2V(16S1P module)
• Nominal Capacity@0.2C: 100Ah
• Continuous Discharge Power@50%SOC: 5120W
• Cycle Life: ≥2500 Cycles @80%DOD,0.2C/0.2C
• Months Self Discharge: ≤5.0% per month at 25?
• Commnication port: RS485/CAN

Standard Discharge

• Discharge Current: 50A
• Max. Continuous Current: 100A
• Discharge Cut-off Voltage: 39V

Operating Environment

• Charge Temperature: 0? to 60? ≤95% Relative Humidity
• Discharge Temperature: -20? to 60? ≤95% Relative Humidity
• Storage Temperature: 0? to 40? ≤85% Relative Humidity

Other parameters

• Shell material: Sheet metal chassis
• battery size: 600(L)*398(W)*164(H)mm
• Pack weight: 42Kg
