Energy Storage Tank with Containment Basin 110%

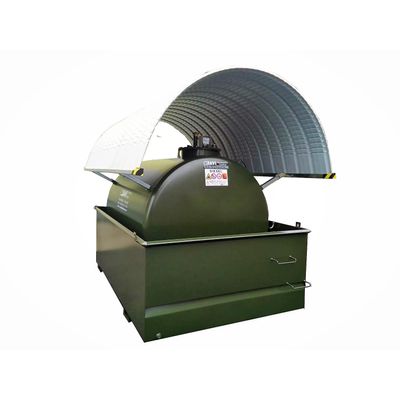

Horizontal axis tank complete with 110% safety basin and anti-rain canopy mod. Full Covering. SINGLE WALL horizontal axis tank. Built in compliance with the Ministerial Decree of 28 April 2005 and the Ministerial Decree of 22 October 2007 of the Ministry of the Interior. Suitable for storage and powering of generators and heating systems.
Most popular related searches
flame arrestor
energy storage
energy storage container
power generation
power generating system
power generation system
carbonization
power storage
Version with activated carbon vent, suitable for storing oil.
complete with:
- manhole Ø 400 mm complete with n. 1 threaded socket of 4 “with aluminum cap for loading, n. 1 threaded socket of 1 ½” with flame arrestor net terminal for venting and n. 2 1 ½ “suction sleeves without internal piping.
- mechanical level indicator
- sleeve with drain plug located on the bottom
- 4 support supports welded to the tank h. 80 about mm
- containment basin (110% capacity), support feet, lifting eyebolts, earthing connection, coupling with drain plug.
- predisposition for fixing the canopy welded to the tank
Painted with specific products for the outdoors in double layer with anticorrosive primer and dark green satin enamel finish.
