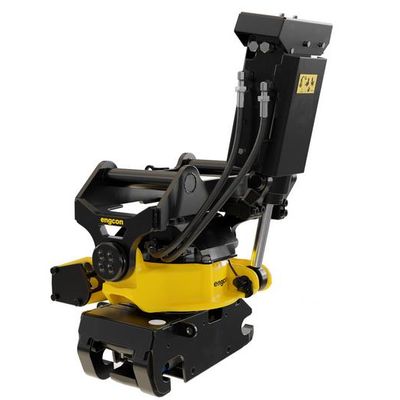

Engcon - Model EC204 -Tiltrotator
The EC204, optimised for excavators of 2–4 metric tons, is the sixth model in the Generation 2 series. One of the great innovations that distinguishes the EC204 from its predecessor, the EC02B, is that the new model can be fitted with an integrated grab or extra hydraulic function.
Suitable for all excavators in the 2-4 tonne weight class
The EC204 has a tilt angle of 45 degrees and can be fitted with engcon’s proportional control system DC2, for stepless control with the highest precision and remote support via the mobile network.
The tiltrotator: Are supplied with hose, quick couplings and electrical installation for one machine. Top attachment point can be adapted to most machines.
- Rotation ∞
- ± 45° tilt
- Complies with European safety standards
- Extra outlet as standard equipment, or double extra outlets (does not apply to models with grabs)
Quick hitch: We offer most types of hitches available on the market.
Control system: Choose between several different control systems based on your machine´s characteristics. The EC204 can usefully be fitted with engcon’s DC2 proportional control system for infinitely variable high precision control and remote support via the cell phone network.
Electrical system: Standard 12-volt.
Accessory: Integrated gripper
The illustration shows a typical configuration. Technical data may vary. We reserve the right to make changes without prior notice.
- Width A [mm]: 267
- Width B [mm]: 161
- Width C [mm]: 169
- Total length D [mm]: 463
- Build height E [mm]: 310
- Tilt [°]: 2x45
- Weight [kg]: 116
- Max bucket width recommended by engcon [mm]: 1,000
- Rec hydraulic flow DC2/SS10 [l/min]: 30
- Rec hydraulic flow SS9 tilt/rotation [l/min]: 10/25
- Max hydraulic pressure [MPa]: 22
- Max breakout torque [kNm]: 28
- Standard mounting: S40
- Base machine weight [t]: 2-4
