AW -Â Model ECB Series - Engine Dynamometer
ECB Series Engine Dynamometers allow for ease of testing as they offer the advantage of dissipating heat via air-cooled fin technology. These dynos are a turn-key system with a power panel, dynamometer, and driveline.
Most popular related searches
dynamometer
air cooling system
electric power
electrical power
turnkey power
electrical panel
heating and cooling
- AW2100SXT DAQ Computer – Digital Display of Power, Torque & RPM, Real-Time Dedicated Processor, Load Control Buttons, E Stop
- DETSXT Load Control Software – Standard
- TS Software – J1939 Optional
- RPM Magnetic Pick Up/60 Tooth Sprocket
- 100-5000 LB. Load Cell
- Heavy Duty, Air Cooled Eddy Current Brake
- Power Panel with DC drive, inline fuses, 208V single phase
- High Speed Driveline/ w Shield
- Universal Adapter
- Heavy Duty 1” Steel Frame
ECB 10x Dynamometer
- HP: 10 HP at 3600 RPM / 0.25 HP at 1800 RPM
- Speed: 10,000 RPM
- PC Control: DC drive control via Real-Time Data Acquisition PC
- Closed Loop Control: Real-Time PID Set-Point Control (RPM/Torque)
- Hand-Held Control: Wireless Hand-Held Control with Data Acquisition Readouts
- Manual Control: Manual Hand-Held Potentiometer

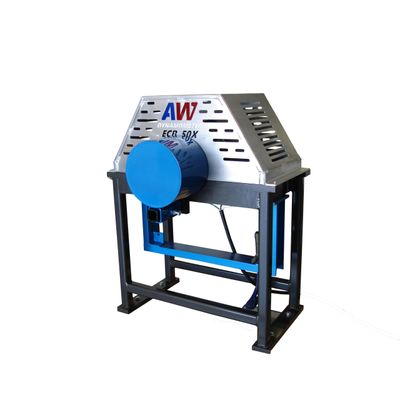

ECB 50x Dynamometer
- HP: 50 HP at 3600 RPM
- Speed: 6,000RPM
- PC Control: DC drive control via Real-Time Data Acquisition PC
- Closed Loop Control: Real-Time PID Set-Point Control (RPM/Torque)
- Hand-Held Control: Wireless Hand-Held Control with Data Acquisition Readouts
- Manual Control: Manual Hand-Held Potentiometer
ECB 100x Dynamometer
- HP: 100 HP at 3600 RPM
- Speed: 6,000 RPM
- PC Control: DC drive control via Real-Time Data Acquisition PC
- Closed Loop Control: Real-Time PID Set-Point Control (RPM/Torque)
- Hand-Held Control: Wireless Hand-Held Control with Data Acquisition Readouts
- Manual Control: Manual Hand-Held Potentiometer
ECB 200x Dynamometer
- HP: 200 HP at 3600 RPM
- Speed: 5,500 RPM
- PC Control: DC drive control via Real-Time Data Acquisition PC
- Closed Loop Control: Real-Time PID Set-Point Control (RPM/Torque)
- Hand-Held Control: Wireless Hand-Held Control with Data Acquisition Readouts
- Manual Control: Manual Hand-Held Potentiometer
ECB 400x Dynamometer
- HP: 400 HP at 3600 RPM
- Speed: 5,500 RPM
- PC Control: DC drive control via Real-Time Data Acquisition PC
- Closed Loop Control: Real-Time PID Set-Point Control (RPM/Torque)
- Hand-Held Control: Wireless Hand-Held Control with Data Acquisition Readouts
- Manual Control: Manual Hand-Held Potentiometer
Cooling Requirements
- Air Cooled - No water required
Electrical Requirements
- Power Panel 208V Single Phase
- AW2100SXT DAQ Computer - 110V
Mounting
- Floor Mount - Concrete anchors
- Optional - Locking Caster Wheel Mount
