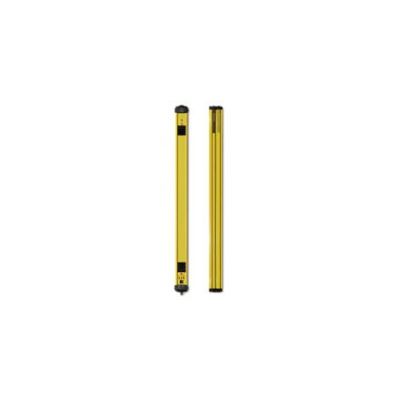

Model PA4600-BB - Entry/Exit Access Guarding Device

SHARE

Operating range of 0.8 to 8 m.Three scan codes to eliminate cross-talk.Response time as low as 16 ms.Beam spacing is available in 500 and 600 mm.Compact size - 46 x 55 mm (1.81 x 2.17 in.).Easy access to selector switches.Simple `one-box` design.transmitter and receiver are located in the same assembly

Most popular related searches
  • Simplified wiring - electrical connections only required at transceiver
  • Two PNP safety outputs designed to directly switch machine primary control elements
  • External Device Monitoring
  • LED indicators for status
  • Two-digit numeric display for diagnostic codes
  • Individual beam indicators
  • One NPN auxiliary output
  • Auxiliary output is selectable for Follow or Alarm modes
  • Choice of three operating modes: Automatic Start, Start Interlock and Start/Restart Interlock
  • Adjustable mounting brackets
  • Utilizes non-shielded cables
  • M-12 quick-disconnect connector on transceiver
  • Meets ANSI/RIA R15.06-1999 and EN999: 1998
  • Muting through RM-3 module
  • Floor mount stands designed to meet RIA R15.06.
