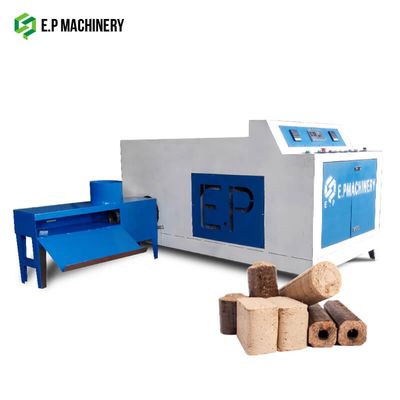

E.P - Model HSZB-40 - Wood Sawdust Charcoal Briquette Machine
Biomass briquette making machine, also known as the biomass forming machine, is the equipment for producing biomass briquette charcoal. The waste of agriculture and forestry biomass is compressed under high temperature and high pressure process without any binder by spiral propeller and heating coil. During the period of forming a high temperature and high pressure space, the loose biomass raw materials are extruded into hollow solid fuel rods (also called raw briquettes or fuel briquettes), the finished briquettes are commonly 40-80mm size, hexagonal hollow shape, which are dense with high density, flammable feature, and can be used directly replacing coal and firewood combustion function. In addition, the biomass briquettes also can be carbonized by carbonizing furnace into charcoal briquettes, which are top quality of BBQ charcoal and popular in BBQ restaurant use.
BrandE.P HSZB-40
Heating Power (kw)1.5x3
Capacity (kg/h)100
Briquette Diameter (mm)40
Size (mm)1200x850x925
Weight (Kg)480
Biomass Moulding Fuel ("BMF" or Biomass Briquette) is based on agricultural and forestry residues, which are under the process of Chipping - Milling - Screening - Drying - Briquetting/Pelletizing - Carbonizing - Packing and finally converted into a variety of shapes (such as block and granules) environmentally friendly fuel. The finished forming briquettes/pellets are one kind of clean fuel that have features of high calorific value, full combustion and can be directly burned.
Application of biomass fuel briquettes- Civil heating use, clean, non-polluting, easy to store and transport;
- Industrial boilers and kiln fuels, replacing coal and gas to solve environmental pollution;
- As fuel for power plant to solve the problem of polluting environment;
- BBQ charcoal.
Wood (sawdust) as the main raw materials, branches, straw, cornstalks, sorghum poles, corn cobs, straw, rice husks, peanut shells, bamboo chips, peanut skin, sunflower seed shells, oil tea shells, cottonseed hulls, furfural slag, wine Slag, mushroom stick, bagasse, corn cob, coconut shell, coffee shell and other agricultural wastes and livestock manure can be made into biomass fuel. The best materials are wood sawdust, shavings and bamboo chips, the biomass briquettes from which have high density and high calorific value with smokeless, odorless, non-polluting, non-explosive and flammable features. It is an internationally recognized green environmentally friendly fuel. The following are several types of biomass fuel charcoal with high carbon content, high density, long burning time and high calorific value.
- Pine wood: Almost all pine can be used;
- A variety of fruit trees and hardwoods, such as birch, eucalyptus, dried green willow, and some fruit trees and various bamboos, the growth period is normally between pine and softwood hard.
Converting biomass agricultural materials into biomass fuel briquettes is a systematic work. The whole production process includes: Crushing — Drying — Briquetting — Carbonizing — Packing.
The first two processes can be considered as preparation processes, that is because the biomass materials need to reach the flowing two points before compressing:
A. the size should be less than 5mm, during this process, one or two crushing machines can help users get powder materials.
B. the moisture should be less than 12%, here one drying machine can reduce the water content.
