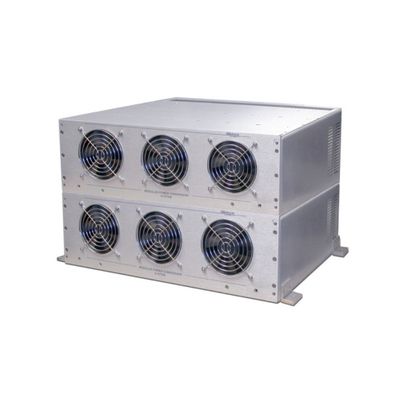

EPS - Model CTP -300-10000 VA - DC/AC Inverter
From DC/AC
The microprocessor controlled Inverters »EPS/CTP« of Electronic Power Supplies provide pure sine wave output voltage. The AC output voltage is available with 115/230V, 1phase or 208/380/400VAC, 3phase to power equipment such as i.e. machines with a output power of up to 10000VA and with a output frequency of 50, 60 or 400Hz. The output neutral is connected to the chassis internally. The input voltage is provided with 24V, 48V, 72V. 110V or 250V DC.
-
Most popular related searches
Products Details
The Inverters have a total efficiency of about 80% and are equipped with a overload and overheat protection.
As an option are Power Fail Alarm, ruggedizing against shock and vibrations, conformal coating as well as extended temperature range (-40°C until +70°C).
The units feature full electronic protection and low input and output noise.
Energy Efficiency: Latest MOS technology
Scope of delivery:
- Inverter
Technical Data
- Order code: 112937
- Voltage: 3x 400V AC (L-L)
- Current: 4,3A
- Power: 3000 VA
- Design Built-in
