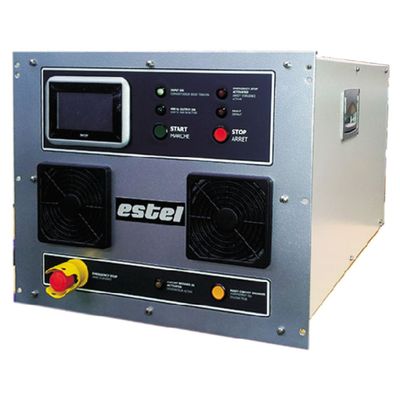

Estel - Model FCA-10-60 -Small Ground Power Unit
Small ground power units are used for supplying three-phase alternating current with a frequency of 400 Hz and a voltage of 3×200/115 V for centralized supply of aviation industry workshops and test facilities. Can be manufactured both in standard complete set and also in accordance to Customer’s special requirements and adjustments.
Most popular related searches
- High level of reliability
- Low energy consumption
- Compact design
- Low noise level
- Robust design
- Designed to comply with RoHS and REACH requirements
- High quality of output three-phase sinusoidal voltage with frequency 400 Hz.
- High efficiency coefficient.
- Low power consumption.
- Designed in 2 versions: desktop and rack 19”.
- Compact design version.
- Line Current Distortion at nominal load, not more than 2,5%.
- Mode of operation at a power of 10 kVA — 24/7.
- Rectifier circuit: active rectifier.
- Modern technical solutions.
- Low noise level.
- Possibility of modification/adjustment in accordance to the Customer’s needs.
- Heavy duty design
Output parameters:
- Rated output power, kVA: 5-20
- Rated output voltage phase/line, V: 3 x 115/200
- Output voltage frequency, Hz: 400 ± 0,001
- Total harmonic content THDU, %: ≤2,5
- Voltage modulation, %: ≤1
- Phase symmetry, electrical degree:: 120 ± 1
- Range of load change, %: 0 – 100
- Permissible overload, %:
- during 600 s: 125
- during 30 s: 150
- during 1 s: 200
- Starting current: no, soft start
Input parameters:
- Supply main rated voltage, V: 3 x 400 (380)
- Supply main voltage permitted deviation, %: ± 15
- Supply nominal frequency, Hz: 50 (60)
- Power factor at 100 % load: ≥ 0,95
- Power consumption:
- at no-load mode with running converter, kW: ≤0,35
- Overall efficiency at nominal rated, %: ≥95
Miscellaneous:
- Overall dimensions W x H x D, mm: 440 ? 402 ? 725
- Weight, kg: ≤65
- Ingress protection (converter module): IP21
- Maximum ambient temperature, º?: + 40
- Minimal ambient temperature, º?: - 10
- Audible noise, 1m: 60
- Relative humidity, %: from 30 to 80
