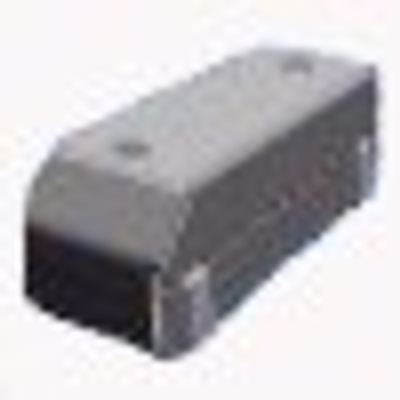

Euroquartz - Model 95SMX(G) SMD -Crystal

Low-cost source of 32.768kHz and from 30kHz to 100kHz frequencies. IR-Reflow capable.

Most popular related searches

Nominal Frequency: 32.7680kHz and 30.000kHz to 100.00kHz
Calibration Tolerance at 25ºC: ±20 ppm, ±30 ppm, ±50 ppm (std.) and ±100 ppm
Load Capacitance (CL): 12.5pF typica
Equivalent Series Resistance (ESR): 50Ω max.
Drive level: 1.0 µW max
. Turnover Temperature: +25°±5°C
Temperature Coefficient: -0.034/°C2 (Parabolic function)
Q: 50,000 minimum
Shunt Capacitance: 0.8 to 1.7pF
Motional Capacitance: 0.001 to 0.004pF
Capacitance Ratio: 330 to 800
Ageing (first year): ±5ppm max. at 25° ±3°C
Ageing (first year): ±5ppm max. at 25° ±3°C Insulation Resistance: 500MΩ minimum @100VDC
Crystal Cut: XY-Cut
Operating Temperature Range: -40° to +85°C
Storage Temperature Range: -55° to +125°C
Shock Resistance: ±5 ppm max.
Vibration Resistance: ±5 ppm max
IR Reflow Resistance: ±10ppm max.
Reflow Condition: 10 seconds max. at 250° ±10°C
