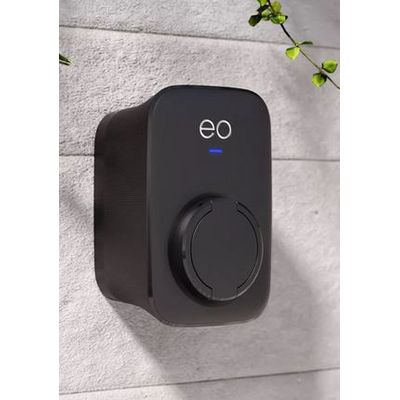

EO - Model MINI PRO 3 -EV Charging Station
SMALL AND STYLISH DESIGN: Compact and ergonomic EV charging station, same size as an A5 notepad (230mm x 151mm x 125mm). FAST CHARGING: Charging capacity of 7.2kW (single-phase), perfect for overnight charging. SMARTPHONE APP CONTROLLED: The EO app lets you review your charging history, monitor energy usage, and start and stop EV charging sessions all from the palm of your hand. ONE FOR ALL: Compatible with all Type 2 electric vehicles, the perfect plug-and-play charging solution.
CHARGE YOUR CAR WITH SUNSHINE:
Future-proof your energy needs with the EO Mini Pro 3. This charger comes with CT clamps as standard, so you can charge your car from your solar panels. On cloudy days, the charger will supplement with green grid energy.
BYE-BYE BLACKOUTS:
Worried about energy blackout when plugging in at home? The EO Mini Pro 3 has power balancing capability to avoid overloading your electrical supply. Charge your car with confidence, knowing that your home’s electrical system is protected.
Cable entry
Power install options available through the rear of the enclosure or at the base
Built in PME
Meets UK smart charging regulations and prevents the need for unsightly earth rods
Mounting options
Wall or post mounted, suitable for indoor or outdoor installation (IP56/IP54 rated)
Wide temperature range
Operates in temperatures between -25°C & 50°C
DC Leakage Protection
Integral 6mA DC leakage detection, no Type B RCD required
Socketed or Tethered
Socketed allows the user to remove the cable and store separately, tethered comes with a fixed cable that cannot be removed
Cables
The Tethered EO Mini Pro 3 is only available with a 5 metre cable, but the socketed unit is available with 3 lengths of cable (5m, 7.5m & 10m)
3-year warranty
3-year warranty as standard with options to extend available
