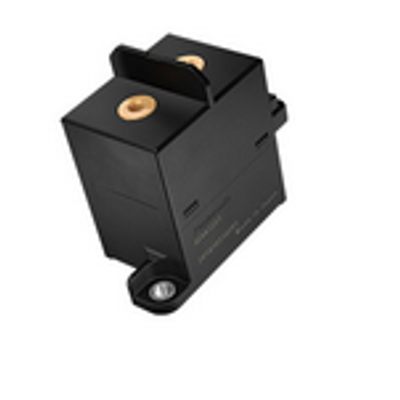

Panasonic - Model AEV110122 -EV Relays (DC Contactors)

FromPanasonic Electric Works Europe AG

SHARE

Contact arrangement: 1 Form A. Operating function: Single side stable. Rated coil voltage: 12 V DC. Terminal shape: TM type. Vibration resistance (Destructive): 10 to 200 Hz, 43 m/s<sup>2</sup> (Time of vibration for each direction; X, Y, Z direction: 4 hours). Vibration resistance (Functional): 10 to 200 Hz, 43 m/s<sup>2</sup> (detection time: 10 μs). Protective construction: Capsule contact.

Most popular related searches

Conditions: Ambient temperature: –40 to +80? (Storage: Max. +85?)<br>Humidity: 5 to 85% RH (Avoid icing when using at temperatures lower than 0?.)
Contact material: Molybdenum
Unit weight: Approx. 90 g
Coil terminal structure: Faston terminal (with terminal protection cover)
Contact capacity: 10 A
Contact voltage drop (initial): Max. 0.5V (By Voltage drop 6V DC 10A)
Dielectric strength (Between contacts and coil) (Initial): 2,500 Vrms for 1min. (detection current: 10mA.)
Dielectric strength (Between open contacts) (Initial): 2,500 Vrms for 1min. (detection current: 10mA.)
Inner carton (pieces): 25
Insulated resistance (Initial): Min. 100 MΩ (At 500 V DC, Measured portion is the same as the case of dielectric strength.)
Max. carring current: 10A Continuity<br>15A 2 min.<br>30A 30 sec. (2mm<sup>2</sup> wire)
Min. switching load (resistive): 1A 12V DC (at 20?)
Outer carton (pieces): 100
Rated switching capacity (resistive): 10A 450V DC (2mm<sup>2</sup> wire)
Shock resistance: Destructive: Min. 490 m/s<sup>2</sup> (half-sine shock pulse: 6 ms)
Shock resistance: Functional: For ON: Min. 196 m/s<sup>2</sup> (half-sine shock pulse: 11 ms, detection time: 10 μs)<br>For OFF: Min. 196 m/s<sup>2</sup> (half-sine shock pulse: 11 ms, detection time: 10 μs)
Usable voltage range: 10 to 16V DC
Model Number: AEV110122
Part Number: AEV110122
Expected life [mechanical]: Min. 10<sup>5</sup>
Expected life [electrical] [resistive]: 10A 400V DC, Min. 75,000 operations<br>10A 450V DC, Min. 30,000 operations
Expected life [swtich-off]: Forward direction: 30A 450V DC, Min. 50 operations
Expected life: Inrush current (capacitor): 30A 400V DC, Min. 50,000 operations<br>15A 450V DC, Min. 70,000 operations
[[Coil data]]Coil resistance [±10%] (at 20?): 116 Ω
Operate (Set) time<br>(at rated coil voltage) (at 20?) (Initial): Max. 50ms (without bounce)
Operate (Set) voltage (at20?) (Initial): Max. 9V DC
Rated operating current [±10%] (at 20?): 0.103 A
Rated operating power (at 20?): 1.24 W
Release (Reset) time<br>(at rated coil voltage) (at 20?) (Initial): Max. 30ms (with no coil protective elements)
Release (Reset) voltage (at20?) (Initial): Min. 1V DC
