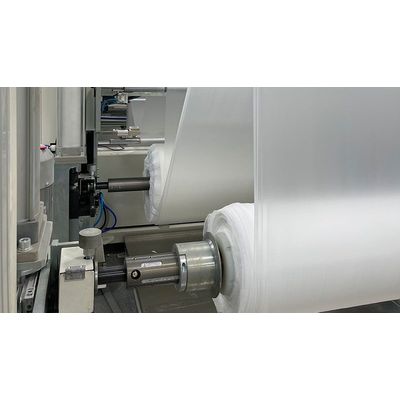

Horad - EVA Cutting and Layup Machine

Item: Parameters
Panel size: (1,680-2,650)*(992-1,500)mm
Cycle time: 20s
Cutting accuracy: ±1.5mm
Layup accuracy: ±1.5mm
Overall dimensions (L*W*H): 6,000*2,320*2,000mm
Voltage: AC 380V, 3 phase
Power: 5kW
Air pressure: 0.5-0.7MPa
Maximum material roll diameter: ≤800mm

• The layup machine can directly mix tailings with new materials through standard hot melting procedures;
• Automatic correction, automatic detection of joints and automatic material throwing for higher production efficiency and stability;
• The hob cutting method prevents the material from be sticked onto the cutter to improve the cutter durability and efficiency.
