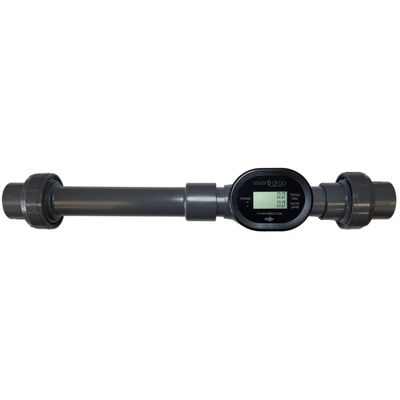

Everydrop - Model 1001-EX - 1 Inch Battery Powered Display Meter
Model 1001-EX is a battery-powered 1” vortex flow meter that provides highly accurate, real-time flow monitoring with totalization. It provides an always-on digital display with a flow rate in gallons/minute, totalization in gallons, leak detect, and over range. Model 1001-EX includes the upstream length and unions. This product is standalone and does not interface with any controller.
Most popular related searches
- Digital Display with:
- Flowrate in GPM
- Total in Gallons
- Leak Detect/Over Range Indications
- 2-3 year battery life typical on 2 AA
- Includes PVC unions for easy installation
- See datasheet for details
Size: 1”
Flow Range (Indicated): 0.5 to 30 GPM (0.1 GPM resolution)
Accuracy:
- RANGE 1.0 to 20.0 GPM: +/-2% of reading
- RANGE 20.1 to 30.0 GPM: Usable Over-range; Accuracy Not Guaranteed (~2%)
- RANGE 0.5 to 0.9 GPM: Leak Detect Range (Slower update rate)
Update Rate:
- RANGE 1.0 to 25.0 GPM: 1.5 seconds
- RANGE 0.5 to 0.9 GPM: < 1 minute (typically ~10 seconds)
Pressure Loss at 20GPM: Less than 1.5 psid
Burst Pressure: 350 psi minimum
Operating Temperature: 32 F to 140 F
Construction Materials:
- Vortex Generator: Stainless Steel
- Vortex Sensor: EPDM Rubber (wetted surface)
- Meter Body: ABS (and PVC pipe 6” extension)
LCD Display:
- Flowrate (GPM): 3 digit, 0.1 GPM resolution
- Flow Total (Gallons): 8 digit, 0.1 Gallon resolution (Non-volatile)
- Alerts: Out of flow range, Leak Detect
- Auto Reset: 10 Million gallons
Battery Life: 2-3 years (based on ~20% Flow Active)
