Model EPL-PM-1X30LED-100 - Explosion Proof LED Light
The EPL-PM-1X30LED-100 Explosion Proof LED Light is U.L. approved Class 1 Groups C and D, and is rated for use in wet and marine environments. The waterproof construction and LED lamp used with this unit provides operators with excellent power and light quality coupled with high versatility and excellent durability. The EPL-PM-1X30LED-100 Pedestal Mounted Explosion Proof Light provides 1,500 square feet of work area coverage with 2,500 lumens of light output. The 30 watt LED lamp in this unit produces more illumination than a 150 watt halogen lamp, runs cooler, lasts far longer, and produces better color rendering and object contrast. This portable unit is waterproof and tested to 500 hours of salt spray exposure in accordance with MIL-F-8115C Military Specifications.

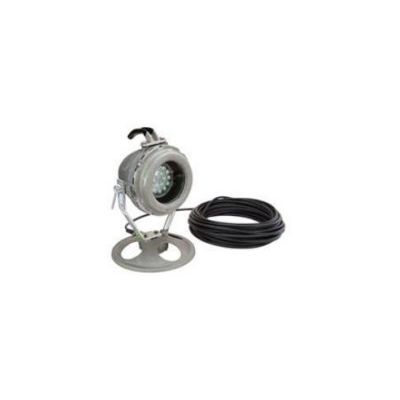

This portable explosion proof LED light fixture is comprised of a 30 watt LED equipped light head mounted atop a circular pedestal base. The entire unit is fabricated from cast aluminum and is factory sealed and water tight. This unit requires no external seals, has a built in carrying handle, and the light head can be adjusted through 135° of vertical movement. The yoke is formed of high strength aluminum alloy, the lens is thermal shock and impact resistant glass, and the entire housing is formed of cast aluminum with an aluminum enamel coating.
The 30 watt LED lamp in this unit is a PAR38 design and produces more lumens than a 150 watt halogen lamp. At 5500k color, the light from this unit is bright white in contrast to the yellowish hue of the standard halogen incandescent bulb. The operating temperature of this LED explosion proof light is approximately 55° Fahrenheit as compared to the 198° operating temperature of the 300 watt incandescent version. This makes the light easier to handle and move and doesn`t create additional heat in smaller, confined spaces. Additionally, the LED lamp in this unit has a far longer operational life at up to 50,000 hours as compared to the 600-100 hours for a standard halogen lamp. This greatly reduces the costs associated with frequently replacing lamps and servicing.
Included with this unit is 100` of 16/3 SOOW (abrasive and oil resistant) cord ending in a 5-15P explosion proof straight blade plug for 120V or a 6-20P explosion proof twist lock plug for 220-240V. This light universal voltage, not multi-tap, and operates on 120-277V AC 50/60Hz without modifications or changing internal components. This unit is also available in a low voltage 12-24 volts DC configuration. The 12-24V DC models are designed to run off of low voltage DC directly. THERE IS NO INLINE TRANSFORMER or plug with the low voltage configuration. Please see the EPL-PM-1X30LED-120X12I-100 for a 12 volt explosion proof light that operates off of 120 volts or 240 volts with inline step down transformer.
This lamp is extremely rugged and ideal for use in marine environments where damage due to salt water spray and dampness is an issue.
Made in the USA Quality
- Thick cast aluminum construction.
- Thermal shock and impact resistant glass lens.
- Aluminum alloy yoke.
- High stability round pedestal base..
- Factory sealed, no external seals required.
- 500 hour salt-spray tested. Per MIL-F-8115C.
- Low Maintenance.
- LED lamp lasts longer, provides more light using less power, and creates less heat.
- Explosion proof cord and plug included..
- Included carrying handle.
EPL-PM-1X30LED-100
UL Listing: United States/Canada
Dimensions: 12"-Diam Base 16.75"-H 13.9"-Depth
Weight: 28 Lbs
Total Watts: 30
Voltage: 120-277V AC 50/60HZ or 12-24V DC
Lamp Lumens: 2500
Lamp Type: PAR38 LED
Mounting: Aluminum Circular Pedestal Base
Wiring: 100` SOOW Cable w/ Explosion Proof Cord Cap
Cord Cap: 5-15 Straight Blade Plug (120V) or 6-20 Twist
Lock(220/240V)
Operating Temp Range: T3C Rated
LED Lamp Life: 50,000 Hours
LED Color Temp: 5500K
LUX: @ Lens-53,500 @ 1 Meter-1,950
This fixture is being remanufactured under file number
E10794.
3 year warranty replacement on this LED light (or LED bulbs for light fixtures with removable LED bulbs). After 30 days, the customer ships the failed LED light and/or LED bulb to Larson Electronics at their expense. If the failure is a manufacturer defect, we will ship a new replacement to the customer. If failure occurs within 30 days of receipt, Larson Electronics will provide a return label via email to the customer. When the failed light is returned, Larson Electronics will ship a new replacement.
