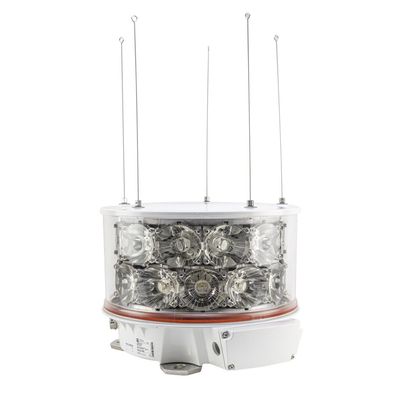

Orga - Model L420EX-R-03 -Explosion Proof LED Marine Light
FromOrga BV
Explosion proof marine light providing 3 nautical mile red omnidirectional visual coverage for offshore structures. The design, with long life LEDs, makes the product ideal for the environmental conditions and long maintenance intervals.
Most popular related searches
Standards/Certification
- Complies with IALA regulation; O-139 The marking of man-made offshore structures – September 2020; chapter 2, paragraph 2.2 – Subsidiary lantern
- Complies with IALA guideline; G1162; The marking of man-made offshore structures – December 2021, chapter 2.3 – Subsidiary lantern
- Complies with UK Department of Energy and Climate Change; Standard marking schedule for o?shore installations – April 2011, chapter 3.2 (f) – Subsidiary light
- Complies with US Coast Guard; 33 C.F.R. Part 67 – Aids to Navigation on arti?cial islands and ?xed structures – May 2004, Chapter 67.05-10, 67.30-5
- Cenelec EN 60079-0, EN 60079-7, EN 60079-18 and EN 60079-28
- Sira 12ATEX3060X; ATEX Ex ll 2G Ex e mb op is IIC T4 Gb
- IEC 60079-0, IEC 60079-7, IEC 60079-18 and IEC 60079-28
- IECEx SIR 12.0025X; Ex e mb op is llC T4 Gb
Performance characteristics
- Flashing red light, Morse code ‘U’ every 15 seconds or quick flash USCG (other character on request)
- E?ective intensity: 15cd minimum (equals 3NM at ATF=0.74)
- Horizontal beam coverage: 360°
- Vertical beam pro?le: 2.5° FWTM minimum
Physical characteristics
- Dimensions (L x W x H):
447 x 416 x 314 mm - Weight: 21kg
- Degree of protection: IP66
- Operating temperature range:
-40°C to +55°C
Electrical characteristics
- Operating voltage: 11 – 30 VDC*
- Power consumption: Approx. 1W average during operation at specified flash character
- Connection details: max. 4mm²; one M25 cable gland entry
- Earth connection: internal max. 4mm² and external M5
System design, control and Monitoring
- *Power, control and monitoring functions by a small, locally mounted control box
- Synchronisation via GPS or optional hard wired.
- Reliable marine navigation light, low cost of ownership and low power consumption
- Suitable for Zone 1 and Zone 2 areas with gas explosion hazard
- Suitable for a 12VDC or 24VDC power supply*
- Wireless synchronisation via GPS (separate synchronisation cable not required).
- Light intensity complies with IALA requirements, even if the intensity of the lanterns is reduced with 25% (service condition factor, as per IALA E-200 (2008) Part 2, 5.1)
- O?shore coated, lightweight, corrosion free, seawater, UV and humidity resistant light alloy base
- Stainless steel mounting facilities to prevent contact corrosion problems
- Integrated Ex e connection box
- Very low power consumption due to e?cient optical design
- Anti-bird spikes (to prevent bird fouling)
