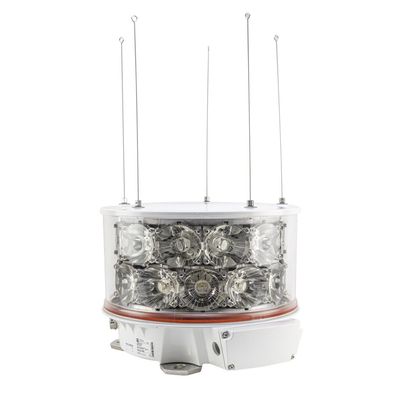

Orga - Model L420EX-W-06-U05 -Explosion Proof LED Marine Light
FromOrga BV
Explosion proof LED marine light (6 NM) Decentralised concept. Explosion proof marine light providing 6 nautical mile white omnidirectional visual coverage for o?shore structures. The design, with long life LEDs, makes the product ideal for the environmental conditions and long maintenance intervals.
Most popular related searches
Standards/Certification
- Cenelec EN 60079-0, EN 60079-7 EN 60079-18 and EN 60079-28
- Sira 12ATEX3060X; ATEX Ex ll 2G Ex e mb op is IIC T4 Gb
- IEC 60079-0, IEC 60079-7 IEC 60079-18 and IEC 60079-28
- IECEx SIR 12.0025X; Ex e mb op is llC T4 Gb
Performance characteristics
- Flashing white light, Morse code ‘U’ every 15 seconds
- E?ective intensity: 180 cd minimum (equals 6 NM at ATF=0.74)
- Horizontal beam coverage: 360°
Vertical beam pro?le: 2.5° FWTM minimum
Physical characteristics
- Dimensions (L x W x H): 447 x 416 x 314 mm
- Weight: 21 kg
- Degree of protection: IP66
- Operating temperature range: -40°C to +55°C
Electrical characteristics
- Operating voltage: 11 – 30 VDC*
- Power consumption: Approx. 1.2 W average during operation at specified flash character
- Connection details: max. 4 mm²; one M25 cable gland entry
- Earth connection: internal max. 4 mm² and external M5
System design, control and Monitoring
- *Power, control and monitoring functions by a small, locally mounted control box
- Synchronisation via GPS or optional hard wired
- Reliable marine navigation light, low cost of ownership and low power consumption
- Suitable for Zone 1 and Zone 2 areas with gas explosion hazard
- Suitable for a 12 VDC or 24 VDC power supply*
- Wireless synchronisation via GPS (separate synchronisation cable not required).
- Light intensity complies with IALA requirements, even if the intensity of the lanterns is reduced with 25% (service condition factor, as per IALA E-200 (2008) Part 2, 5.1)
- O?shore coated, lightweight, corrosion free, seawater, UV and humidity resistant light alloy base
- Stainless steel mounting facilities to prevent contact corrosion problems
- Integrated Ex e connection box
- Very low power consumption due to e?cient optical design
- Anti bird spikes (to prevent bird fouling)
