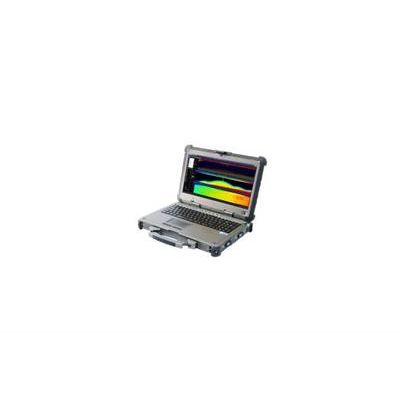

Aaronia - Model NF-XFR PRO (1Hz - 20MHz) -Extrem Stable Outdoor Spectrum Analyzer
The SPECTRAN NF-XFR PRO has been specifically designed for use in harsh conditions such as for military use , aerospace , mining , construction , research and development, even in the pouring rain , extreme temperatures , and extremely dusty and dirty environments. With this Spectrum Analyzer you can master all the challenges . It provides a powerful, extremely impact resistant Outdoor notebook as well as a high-end spectrum analyzer in one compact device. The NF-XFR PRO has been independently tested in accordance with MIL -STD- 810G , IP65 and MIL -STD- 461F . The analyzer is based on a novel and patented by Aaronia method of spectrum analysis. The locating of interference sources and their causes , the determination of frequency and signal strength measurement and evaluation conform to the most complex limits - all this allows the SPECTRAN NF-XFR PRO .
Highlights integrated Spectrum Analyzer :
- Frequency range: 1Hz to 20MHz (30MHz)
- Typ. level range: 200nV bis 200mV
- Typ. accuracy: 3%
- Resolution (RBW): 0,3Hz to 10MHz (1-3-10 step)
- Detectors: RMS, Min/Max
- Demodulator: AM, FM
- 65 MSPS
- High-impedance SMA-input
- Incl. Option 005 (12 Bit DDC) and 008 (20MHz frequency expansion)
Highlights Notebook:
- Exclusive Ballistic Armor Protection System to meet and exceed real world and military standards MIL-STD-810F
- PrimoSeal technology with highest Ingress protection rating (IP65)
- Prozessor: Intel Core i5-2520M (2,50GHz, 3MB cache) nVidia Quadro NVS 4200M, 512MB DDR3 with express-card
- Monitor: 14"(1366x768)
- Memory: 4096MB (2x2048) 1333MHz DDR3
- Hard Disk: 128GB shock absorbence solid state drive
- Battery: primary 6 cell 60Wh
- Operating system: Windows 7 SP1 Pro
- Country of Manufacture Germany
- Frequency range 1Hz - 20MHz
- Weight 5,5kg
- Typ. precision base unit 3%
- Lowest possible SampleTime 1mS
- Included with delivery NF-XFR Outdoor Spectrum Analyzer, MCS Analysis Software (installed), SMA-tool, battery, battery charger and english manual
