Exxelia Ohmcraft - Model HVR Series - High Voltage Radial Leaded Resistors

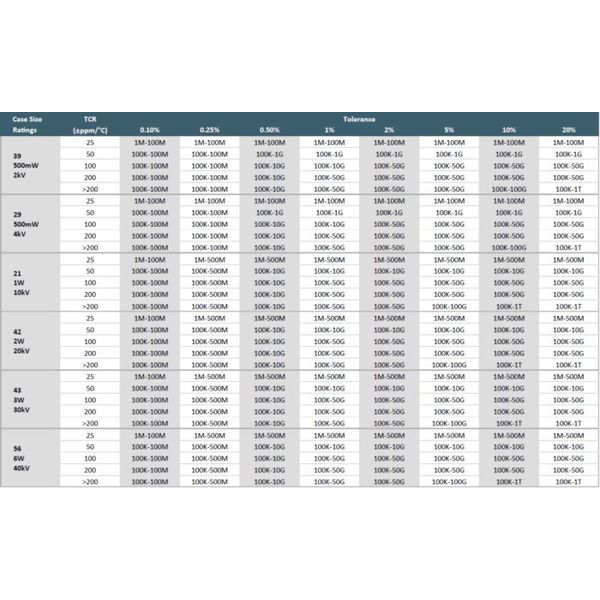

Ohmcraft's High Voltage Radial Leaded Resistors in the HVR Series leverage patented Micropen® precision printing technology to deliver superior precision in thick-film radial through-hole resistor dividers. Electrical specifications indicate that tolerance and value are dependent on the case size with an absolute tolerance of 15% unless otherwise specified. Typical TCR tracking is < 25°C ppm/°C. These resistors use a 96% alumina substrate and are glass encapsulated with optional single side epoxy or powder coating for enhanced durability. Custom configurations are available upon request, providing flexibility for varied applications including medical, test and measurement, power supply, defense, and aerospace. For detailed specifications and custom requirements, consultation with the sales staff is recommended.Most popular related searches
Our patented Micropen® precision printing technology provides superior precision, thick-film radial through hole resistor dividers.
- Voltage Ratings to 40,000 Volts
- Resistance Values to 4 TΩ
- Ultra High Stability
- Very Low Noise
- Tolerances to 0.1%
- TCR to 25 ppm/°C
- VCR to 0.05 ppm/V
- Custom Configurations
Wire Leads:
22AWG (0.025″),
1.3″ typical lengthSpade Leads:
0.01” thick, 0.02” wide, 0.325”
minimum length, standoff 0.06” max.
