Exxelia Ohmcraft - Model UHVC Series - Ultra High Voltage Chip Resistors
Ohmcraft's Ultra High Voltage Chip Resistors (UHVC Series) leverage the company's patented Micropen® precision printing technology to provide resistors with the highest voltage ratings available in the industry. The UHVC Series features serpentine patterned resistors that deliver superior electrical characteristics. These resistors typically require potting upon assembly due to their high voltage ratings. Constructed with a thick film resistive element on a 96% alumina substrate, these resistors are encapsulated with epoxy and terminated with tin over a nickel barrier, or lead solder over a nickel barrier. They are available in bulk packaging, tape and reel, or flat pack, and conform to EIA-481 tape and reel specifications. The UHVC Series is designed to meet diverse requirements and can be customized upon request. Applications span medical, test & measurement, power supply, defense, and aerospace sectors. For custom configurations or further specifications, Ohmcraft's sales team is available for consultation.Most popular related searches
Our patented Micropen® precision printing technology provides a superior surface mount resistor with the highest voltage ratings available in the industry.
- Highest voltage ratings available in a surface mount resistor (up to 20,000 Volts).
- Replace leaded thru-hole resistors with surface mount resistors saving assembly and board space costs.
- Replace multiple resistor arrays with a single resistor.
Our Exxelia Ohmcraft serpentine patterned resistors produce superior electrical characteristics, including:

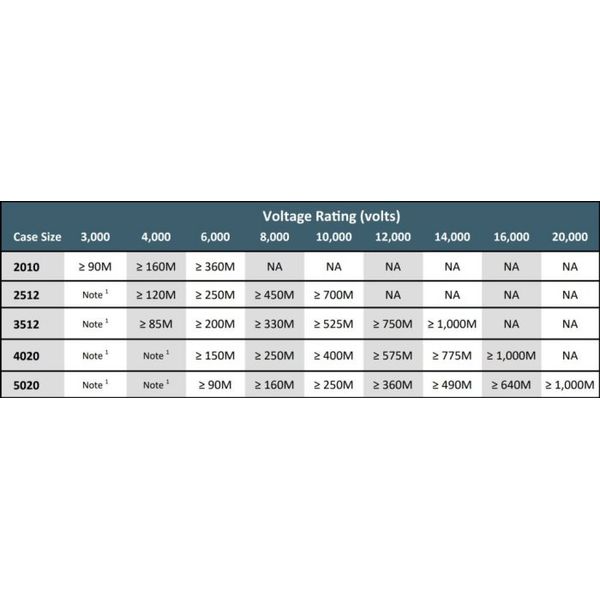

- Voltage Ratings to 20kV
- Resistance Values to 50 Gigohms
- Ultra High Stability
- Very Low Noise
- Tolerances to 1.0%
- TCR to 100 ppm/°C
