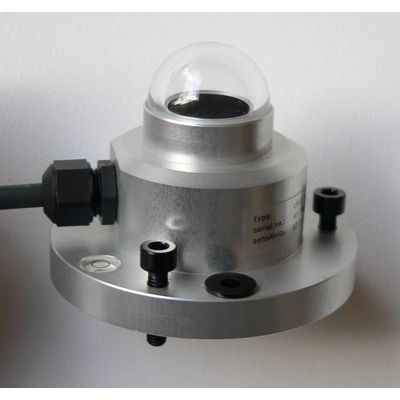

Fairmount - Model FM4004.00 -Pyranometers
Pyranometer: ISO first class for solar energy. Test applications. Spectral range: 0.3 to 3 μm. Sensitivity (nominal): 15 μV/(Wm-2). Operating temperature: -40 to +80 oC. Irradiance range : 0 to 2000 Wm-2.Temperature response: 4 % (interval 50 K). Calibration traceability: WRR. Required heater power: 1.6 W @ 12VDC. Temperature sensor: Pt100 (standard). 10kOhm Thermistor (optional). Cable length: 5 m (standard) extended in multiples of 5 m (optional).
Most popular related searches
FM4000.00
- Pyranometer: ISO second class
- Spectral range: 305 to 2800 nm
- Sensitivity (nominal): 15 μV/ Wm-2
- Temperature range: -40 to +80 oC
- Range : 0 to 2000 Wm-2
- Temperature dependence: < 0.1%/oC
- Calibration traceability: WRR
- Applicable standards are ISO 9060 and 9847
- WMO (World Meteorological Organisation)
- ASTM E824-94.
- Can also be used for stability estimations according to EPA ( EPA- 454/R-99-005).
FM4003.00
- Pyranometer: ISO First class
- Spectral range: 305 to 2800 nm
- Sensitivity (nominal): 15 μV/W/m2
- Temperature range: -40 to +80 oC
- Range : 0 to 2000 Wm-2
- Temperature dependence: < 0.1%/oC
- Calibration traceability: WRR
- Applicable standards are ISO 9060 and 9847
- WMO (World Meteorological Organisation)
- ASTM E824-94.
- Can also be used for stability estimations according to EPA ( EPA- 454/R-99-005).
