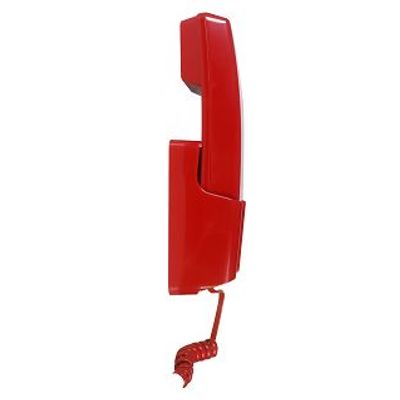

FanhaiModel DH9901E -Fire Telephone Extension

SHARE

The DH9901E fire telephone extension with address is a two-wire fire telephone extension (hereinafter referred to as the extension). The extension is designed with non-polar wiring and built-in microprocessor, can operate together with a DH99E fire telephone host. In addition, the local address can be set by manual dialing with the dial switch. The host can be called by extension with off-hook operation, and communication is enabled by off-hook while the host is calling. The extension and the host can realize full-duplex communication, characterized by the simple and convenient operation, as well as clear communication.

Most popular related searches
  • Executive standard: GB 16806-2006, GB 3380, GB/ T 15279-2002
  • Operating voltage: DC24V (pulse width modulation)
  • Working current: monitoring state<0.5mA, communication state <12mA
  • Work instruction: the red indicator for monitoring status flashes once every 5 seconds, and when flash-hook bounces, set the local address indicator to normally on; under host calling state, the extension’s ringing indicator is off, the non-ringing indicator is on, and the address invalid indicator flashes twice continuously every 5 seconds.
  • Wiring method: polarity-free two-bus system (L1, L2)
  • Coding mode: field coding is carried out by a dial switch, and the address codes 1 to 99 are optional.
  • Overall dimensions: 206mm long, 58.5 mm wide (with base)
  • Installation height: ≤ 1.5m
