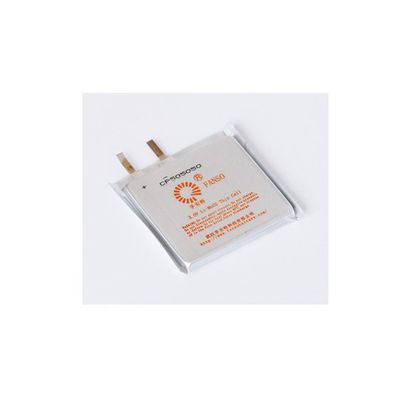

Fanso - Model CP505050 -3.0V Primary Lithium Ultrathin Soft Battery 3000mah
Model No: CP50S050. IEC Size:. Voltage(V): 3.0V. Weight(g): 23g. Current(mAh\mA): 2000mAh. Max constant current(mAh\mA): 1000mA. Operate Temp.(°C): -40-60. End voltage(V): 1.8V.
Most popular related searches
non-flammable electrolyte
backup power
primary lithium battery
power electronic
high voltage operations
lithium battery
incineration
incinerator
- High and stable operating voltage;
- Long shelf life(Self-discharge rate less than 1% at 25°C);
- Long operating life;
- Wide temperature range;
- Stainless steel container and end caps;
- Hermetic glass-to-metal sealing;
- Non-flammable electrolyte;
- Compliant with IEC86-4 safety standard;
- QNon-restricted for transport;
- High energy density{700kw/kg).
- Dimension: Φ50.5mm*50.5mm*5.2mm;
- Weight: 23g;
- Capacity: 3000mAh;
- (at 10mA,+25℃,1.8V cut off)
- Open circuit voltage: 3V
- Max continuous current:1000mA
- （at 25℃ 1.8V cut off, up to 50% of nominal capacity）
- Max pulse current:2000mA;
- (15second pulses to 1.8V cut off, drained from half-discharged cells at 10mA 25℃)
- Operating temperature: -40℃ ~ +60℃;
- Utility metering;
- Alarm and security devices;
- Memory back-up power;
- Professional electronics;
- Automotive electronics;
- Real-time clock;
- Tracking system.
Clean, cool (preferably below +20℃, not exceeding +30℃), dry and ventilated.
Do not recharge, short circuit, crush, disassemble, heat above +100℃, incinerate,or expose contents to water. Dispose of used batteries properly in case of explosion, burn and leakage.
