Fast Flow - Offshore and Oilfield Ready Multi-Circuit Hydraulic Power Unit
Fast Flow’s hydraulic power units are designed with oversized cooling systems and have several engine options such as Deutz John Deere, or Kubota. Fast Flow makes hydraulic power units that are off shore ready and Coast Guard compliant. Our oilfield ready units meet strict Shell Oil and BP off shore safety standards.
Engine
- Kubota, Deutz or John Deere engines
- EPA rated engine with rubber engine mounts
- LOFA or Murphy engine monitoring packages
- Engine safety shutdown package
- Double fuel and hydraulic filtration
- Optional air inlet shutdown valve
- Electric start, battery & weather safe battery box
Safety
- 4 Point and center eye pad lifting system
- Fiberglass protective grating above engine
- System flow thru relief valve
- Front & rear safety transport binder rings
- Easy to read safety and operation labeling
- Flame arrestor exhaust with heat shield
- BP, Shell Oil and USCG offshore compliance
Hydraulics
- Single or twin circuit variable flow controls
- Low level hydraulic fluid shutdown
- 100% oil and fuel spill containment
- Hydraulic oil filter with spin on cartridge
- Optional 5 gallon cube hydraullic cooling system
- 5000 PSI hydraulic gauges
- Screw together 1" supply & return fittings
- Hydraulic oil level and temperature indicators
Other 100 HP Hydraulic Power Unit Features
- Built in hose hangar rack
- Double coated marine epoxy finish
- Fully boxed frame tubing for added strength
- Top tank dessicant breather
- Removable tanks with oversized clean out ports
- 60 or 100 GPM hydraulic cooler options
- 10" Fork lift boots & 4" x 10" box tube skid rails
- Low point drain plug & tank isolation valves
- Horsepower: 100 HP
- Operating Pressure: 2800 to 3000 PSI
- Hydraulic Flow 42 GPM
- Operating PSI: 2800 to 3000 PSI
- Hydraulic Tank 80 Gallons
- Diesel Tank 60 Gal
- Weight: 3800 Lbs
- Dimensions: 90” x 32” x 72”
- Hydraulic Oil: AW or No Sheen

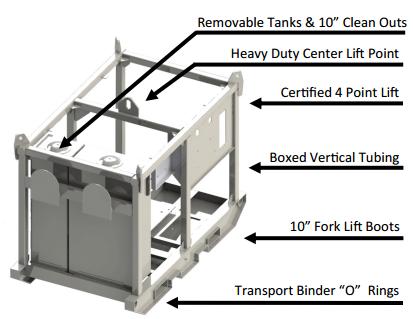

Picking up or locking down, Fast Flow’s hydraulic power units have safety built in. Fast Flow hydraulic power units are certified to meet the rigors of off shore and oilfield use. The engineered lifting systems are constructed of fully boxed members, with a 4 point lift system and a 3/4” center eye pad lift point. Safety binder “O” rings make securing the power units for transportation quick and easy.
