Myers EPS
Myers EPS - Model Illuminator E -Fast Transfer Central Inverter System
FromMyers EPS

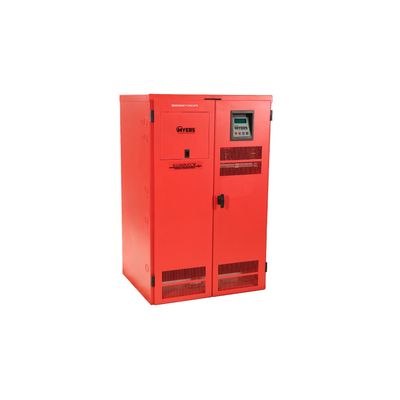

Myers EPS Illuminator E is a fast transfer central inverter system for HID and motor loads. The system features a single-cabinet design for units up to 16.7kVA/kW, reducing footprint and installation costs. With a wealth of advanced communications features, the Illuminator E offers unmatched convenience.
Most popular related searches
inverter system
central inverter
circuit breaker
inverter
inverter power
remote circuit breaker
power inverter
- 1.5kVA, 2.25kVA, 3.0kVA, 3.75kVA, 5.0kVA, 6.0kVA, 8.0kVA, 10.0kVA, 12.5kVA & 16.7kVA
- 1.5kVA/kW — 5.0kVA/kW: 47″ H x 30″ W x 25″ D
- 6.0VA/kW — 16.7kVA/kW: 76″ H x 48″ W x 25″ D
- Single Phase, Pure Sine Wave
- PWM/IGBT Technology
- Micro-Processor Control
- User Programmable with Password Protection
- UL 924 Listed
- Automatic Event, Test and Alarm Log
- RS232 Communications Port
- Input Circuit Breaker
- 2ms Transfer Time
- Low Audible Noise
- Space-Saving, Single Cabinet Design
- 65kAIC Withstand Rating
- Warranty:
- Electronics – 1 Year Standard Includes All Parts
- Batteries – 1 Year Full, 9 Years Prorated
- Enhanced Communications
- Expanded Building Management Protocols
- BACnet or Modbus Communications Interface
- NEW IoT Connect Cloud Software
- Internal Maintenance Bypass
- Summary Alarm Dry Form C Contacts
- Status Monitoring Dry Form C Contacts
- Remote Meter Panel
- Output Circuit Breakers
- Factory Startup and Training
- Normally Off Output
- Output Trip Alarms
- Remote Summary and Remote Status Alarm Panels
- Onsite Services & Extended Warranty
