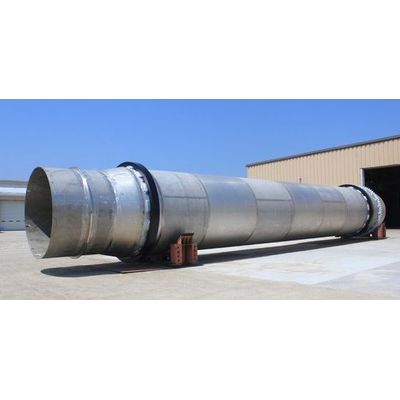

Feeco - Direct-Fired Rotary Kilns
From Equipment - Thermal Processing
FEECO is a leading manufacturer of highly engineered, custom rotary kilns for processing solids. Our high temperature kilns have earned a reputation for their durability, efficiency, and longevity. We offer both direct- and indirect-fired units.
-
Most popular related searches
Product Details
Rotary kilns work by processing material in a rotating drum at high temperatures for a specified retention time to cause a physical change or chemical reaction in the material being processed. The kiln is set at a slight slope to assist in moving material through the drum.
Direct-fired kilns utilize direct contact between the material and process gas to efficiently process the material. Combustion can occur in a combustion chamber to avoid direct flame radiation, or the flame can be directed down the length of the kiln.
Direct-fired kilns can be of the co-current or counter current configuration, referring to the direction the combustion gases flow in relation to the material.
Optional Components
- Various Seal Options
- Machined Bases
- Screw Conveyor Feeder
- Automatic Gear Lubrication System
- Exhaust Gas Handling Equipment
- Ductwork
- Various Burner Configurations
- Components for increasing efficiency (flights, dams, bed disturbers, etc.)
Accommodates Various Fuel Types
- Fuel Oil
- Natural Gas/Propane
- Waste Heat
- Biogas
Material Options
- Carbon
Features:
- Size: Up to 15′ diameter x 100’+ long (Up to 4.6m dia. x 30.5m+ long)
- Capacity: 1 TPH – 50 TPH (1 MTPH – 45 MTPH); maximum capacity is dependent on process variables unique to each application
- Parallel or counter current flow
- Optimized Refractory Lining Solutions (multiple layers, castable, brick)
- Engineered shell to eliminate distortion and misalignment due to high operating temperatures
- Various Drive Assemblies Available
