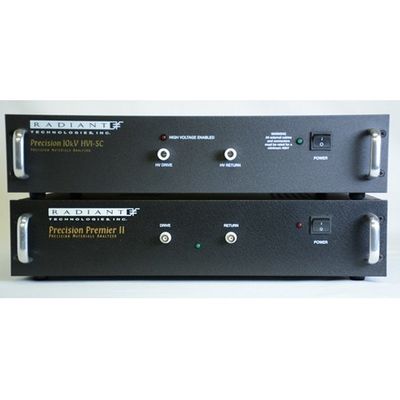

RTI Precision - Model Premier II -Ferroelectric Tester
The Precision Premier II is an advanced tester that has a large test envelope in terms of frequency response, voltage range and accuracy. The Premier II has a fast hysteresis frequency rating of 250KHz at +/-10V built-in to the system. The Premier II execute tests to 100 kHz below 10 Volts, making it useful for both bulk and thin film capacitors. The Premier II is capable of measuring thin ferroelectric film capacitors down to 0.1 square microns. Using up to 32,000 points with 18-bit resolution.
The Precision Premier II is offered with a variety of internal amplifiers. The Precision Premier II is offered in a ±10V, 30V, 100V, 200V, and 500V built-in drive volt option. The Precision Premier II can be expanded to 10kV with the addition of a high voltage interface and amplifier. The Premier II tester makes testing of thin films and bulk ceramics a fast and simple process.
The Precision Premier II executes hysteresis, pulse, leakage, IV, and CV (and many other tasks) measurements without changing sample connections. With the addition of extra fixtures, the Precision Premier II can measure pyroelectric properties, magneto-electric properties, transistor characteristics, cryogenic properties, bulk ceramic and/or thin film piezoelectric properties.
- Voltage Range (built-in drive voltage) : ±10V, ±30V, ±100V, ±200V or ±500V built-in
- Voltage Range with an external amplifier and high voltage interface (HVI) : 10KV
- Number of ADC Bits : 18
- Minimum Charge Resolution : 0.80fC
- Minimum Area Resolution (assuming 1 ADC bit = 1μC/cm2) : 0.080μ2
- Maximum Charge Resolution : 5.26mC
- Maximum Area Resolution (assuming saturation polarization = 100μC/cm2) : 52.6cm2
- Maximum Charge Resolution with High Voltage Interface (HVI) : 526mC
- Maximum Area Resolution (assuming saturation polarization = 100μC/cm2) w/o HVI : >100cm2
- Maximum Hysteresis Frequency : 250KHz @ 10V
- 50KHz @ 30V
- 50KHz @ 100V
- 50KHz @ 200V
- 2KHz @ 500V
- Minimum Hysteresis Frequency : 0.03Hz
- Minimum Pulse Width : 0.5μs
- Minimum Pulse Rise Time (5V) : 400ns
- Maximum Pulse Width : 1s
- Maximum Delay between Pulses : 40ks
- Internal Clock : 25ns
- Minimum Leakage Current (assuming max current integration period = 1 seconds) : 1pA
- Maximum Small Signal Cap Frequency : 1MHz
- Minimum Small Signal Cap Frequency : 1Hz
- Output Rise Time Control : 105 scaling
- Input Capacitance : -6fF
- Electrometer Input All Test Frequencies for all test at any speed : Yes
