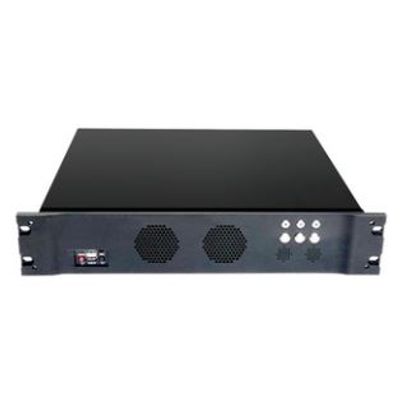

Hanvy - Fiber Bragg Grating Temperature / Strain Sensing System

High-precision measurement of parameters is particularly suitable for long-term real-time online monitoring under special environments such as large-scale strong electromagnetic fields.It can detect up to 62 miles. Scope of application: petroleum pipelines, oil and gas pipelines, buildings, petroleum storage tanks, subway tunnels, coal belt conveyors, smart pipe corridors, warehouses, bridges, power cables, natural gas stations, borders, PCCP pipelines, high-speed rail tunnels, ancient buildings, geological surveys , Highways, oil production stations, geothermal exploration, thermal energy storage tanks, oil wells, etc.

• Monitoring of ancient buildings, monitoring of geological hazards, monitoring of temperature and humidity in warehouses

• Multi-point distribution measurement, large number of measurement points, and simple transmission cable

• Multiple measurement, small volume and weight shared by each measurement point

• Anti-electromagnetic interference, remote measurement

• Good long-term stability, suitable for long-term monitoring

• Easy to implant into composite materials

Measuring principle: The relationship between the center wavelength of the fiber grating reflection spectrum and the temperature strain is used to achieve the measurement.

• Temperature measurement accuracy ±（1℃+0.01|Measurements|）
• Temperature resolution 0.2℃
• Strain measurement range -2500με~+2500με or 0~5000με
• Strain measurement repeatability ±（10με+0.01|Measurements|）
• Strain resolution 2με
• Number of channels 1、2、4、8、16 channel（customizable）
• Measurement bandwidth 1Hz to 100Hz（Related to the number of channels）
• Miniature demodulator power consumption Steady temperature ≤12W，High and low temperature ≤17W
• Small size demodulator 150mm×150mm×160mm（customizable）
