Oldcastle Infrastructure, Inc.

Fiberglass Deferral Cabinets

SHARE

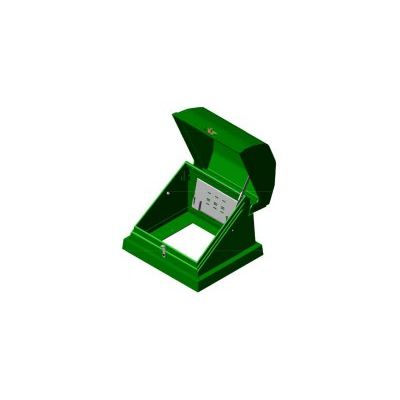

MacLean Highline manufactures multipurpose fiberglass deferral cabinets that let you install underground electrical cable for interim needs but which can also be used as single phase sectionalizing cabinets. With a rugged fiberglass construction and UV protection, these three phase deferral cabinets are as aesthetically pleasing as they are functional.

Most popular related searches
  • Designed as a feed-thru point that will eventually be replaced by a transformer, but can also be used as a single phase sectionalizing cabinet.
  • Complete access from top and sides when lid is open.
  • Rugged fiberglass construction.
  • Smooth aesthetically pleasing exterior finish.
  • Weather and UV enhancing outer coating applied.
  • Standard color Munsell Green, other colors may be available upon request.
  • External hardware is stainless steel or brass.
  • No hinges, cover rolls back on (2) pivot points.
  • Junction mounting boards are easily removable for installation of load-break junctions.
  • Will accommodate 15kV and 25kV, 200Amp and 600Amp junctions. Installed factory junctions can be provided.
  • Wind locks provided for added safety.
  • Designed to mount to a Highline Product box pad.
