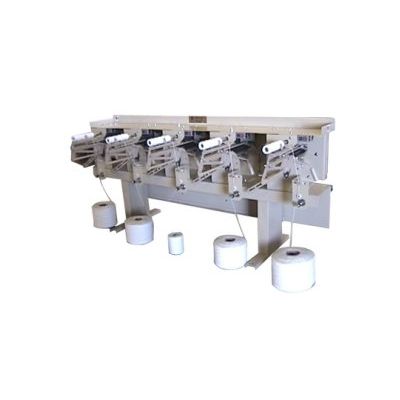

Maverick - Model M 20BB -Filter Winding Machine
The M20BB filter winding machine is ideal for manufacturing continuous, yarn or string, wound filters. This is a popular model, for producing high quality and good production volume when needed.
Most popular related searches
- The M20BB is capable of producing filters:
- 4.5” – 20.25” in length
- 1.5” – 5.5” diameter
- Micron ratings of .5 to 200
- Five spindle machine / 100 pcs/hr. 20”L.
- Each spindle is set up and runs independently from one another.
- I.E. : All five spindles can be set to run the same type of filters or all different lengths and microns if so desired.
- Ninety second typical cycle time per 10” length
- Single or three phase electric power
- No air supply required
- Machine frames and components, laser cut steel and other materials
- All Filter Winding Machines are Made in Amarillo, Texas, U.S.A.
- L108” x W62” x H48”
- Shipping weight 1270 lbs.
