Fining - Model FAS -36W AC/DC Constant Voltage LED Driver Power Supply Adapter
The 36W LED AC/DC drivers feature the constant voltage mode. The products operate from 100~240VAC and offer models with differentiated voltage ranging between 9V and 36V. Thanks to the high efï¬ciency up to 85%, with the fanless design, the entire series is able to operate for -40°C ~0°C.
Most popular related searches
Safety Approvals
CE, designed acording to UL/eTL/FCC standards
Mechanical Characteristics
Length: 111mm Width: 41.8mm Height: 24mm Weight: 85g
- Ultra-small size, light weight, streamline, snap-button and easy to carry;
- Competitive price design, high reliability;
- Built-in over voltage, over current and short circuit protection;
- Input Characteristics: voltage :100-240VAC ± 10%; Frequency: 50/60Hz; Current: 1.0A Max; Starting Time: 3s Max; Inrush Current: 20A/240VAC Max;
- Output characteristics: constant voltage mode; high precision, low noise; Hold up time: 20mS Min;
- Environmental: Operating temperature: 0 ℃ -40 ℃, 5% -90% RH; Storage temperature: -20 ℃ -85 ℃, 5% - 95% RH;
- Cooling mode: natural cooling;
- Energy efficiency accordingly: ERP/ CEC-VI standard;
- Safety standards: IEC/EN/UL60950;
- M eet ROHS standards;
- Pin Type: UL / VDE / BS / SAA/Argentina ;
- Average failure rate: 50,000 hours;

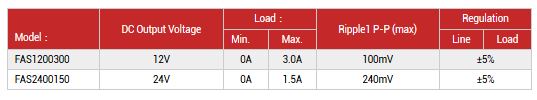

- Output electrical characteristics: (see below sheet)
- LED street lighting
- LED harbor lighting
- LED harbor lighting
- LED greenhouse lighting
- LED Strip Light
