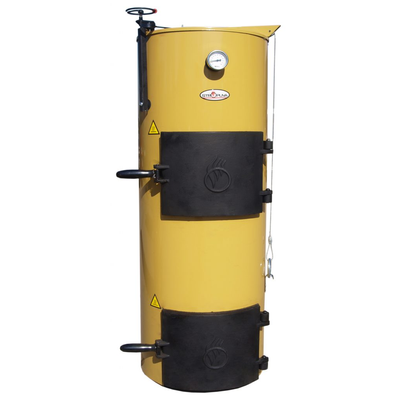

Stropuva - Model S10+ -Firewood Boiler
When firewood is loaded, a single load can burn up to 30 hours. A single load of sawdust briquettes can burn up to 4 days. Solid fuel: firewood, timber waste, sawdust briquettes, wood chips. Combustion duration of solid fuel load depends on its quality of fuel, outdoor and indoor temperature, thermal resistance, and other factors. Recommended moisture ≤30%.
Most popular related searches
firewood boiler
solid fuel boiler
wood pelletizing
wood pellet
wood pelletting
wood chip combustion
wood burning
boiler efficiency
boiler pressure
wood chip briquetting
- Boiler model: S10+
- Power (kW)*: 10
- Heating area ( m²)**: 60-110
- Fuel capacity (dm³): 210
- Maximum amount of firewood (kg): 40
- Maximum amount of wood pellets (kg): –
- Maximum amount of briquettes (kg): –
- Maximum amount of coal (kg): –
- Burning time of wood on a minimum time mode (hr): 31,5
- on maximum mode ***: 6,1
- Burning time of wood pellets on minimum mode (hr): –
- on maximum mode ***: –
- Burning time of briquettes on minimum mode (hr): –
- on maximum mode ***: –
- Burning time of coal on minimum mode (hr): –
- on maximum mode ***: –
- Firewood length (cm): up to 55
- Amount of water in the boiler (l): 26
- Efficiency (%): 86,3
- Boiler water pressure (bar): 2,0
- Pressure safety valve (bar): 1,5
- Chimney Draught (Pa): 10-20
- Flow of heated water (l / h): 250
- Water temperature in the boiler (° C): 85
- Minimal area of chimney flue (cm²): 330
- Chimney diameter (mm): 200
- Distance between ground and chimney (mm): 950
- Height (mm): 1300
- Depth (mm): 670
- Weight (kg): 205
