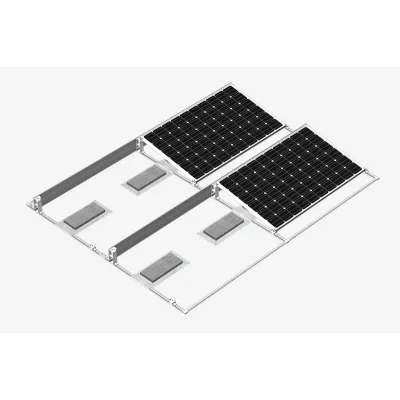

MRac - Flat Roof Ballasted Solar Racking System
The Xiamen Mibet's flat roof ballasted solar racking system is designed for efficient, reliable solar panel installation on flat surfaces. It uses concrete blocks as ballast to secure the system against wind and seismic forces without requiring roof penetration, making it compatible with both flat roofs and ground applications. The modular design allows for easy assembly using pre-assembled aluminum brackets, reducing installation time and labor costs. The system supports standard 60 or 72 cell solar panels and accommodates various panel arrangements to optimize energy generation. Additionally, it can be adjusted for fixed or variable angles, providing flexibility to meet different project needs. This system features robust construction, with strict quality control processes in place, ensuring high performance and durability. Complemented by comprehensive support including installation guides, technical design assistance, and a 10-year warranty, the solution offers both adaptability and reliability for residential, commercial, or industrial solar projects.Flat roof ballasted solar racking systems are low-cost and easy to install PV modules. The system can also be used on the ground. The racking system has pallets underneath the panels on which heavy concrete blocks will be placed. The weight of these blocks keeps the solar panels on the flat roof.
The weight of rocks or concrete blocks is used in ballasted systems to resist wind uplift and seismic shaking forces acting on the solar array. Ballasted systems typically consist of interconnected rows and columns capable of (partially) transferring point loads from one module to multiple neighboring parts.
The MRac PV ballast system is a non-penetrating mounting system that will not leak or cause other problems and can also be adjusted to be fixed to the roof as needed. The ballast system mounting kit is compatible with all 60 or 72 standard solar panels and is also suitable for most other panels.
Flat roof ballasted solar racking can be designed with a fixed angle or adjustable brackets to meet the customer’s needs. They can be installed directly on the concrete rooftop or on blocks. Extruded aluminum solar mounting kits are highly pre-assembled to simplify installation, saving labor time and cost.
Built To Last
It is well-designed, which greatly simplifies installation and maximizes the use of available roof space.
Easy and Fast Installation
Pre-assembled brackets are simple and firm to install, and simple bolt fastening, saving project installation time.
Great Compatibility
The ballasted mounting system is compatible with most framed solar modules and allows for flexible array arrangement to maximize power generation and accommodate rooftop facilities (air-con units, lights, etc.).
High Quality
Mibet employs strict quality management and control over raw material procurement and the manufacturing process to ensure the delivery of high-quality products.
Type: Flat roof, ground
Bottom Support: Concrete foundation
Installation Angle: 10°
Wind Load: 60m/s
Snow Load: 1.6KN/㎡
Panel Framing: framed
Panel Orientation: horizontal
Design Standards: AS/NZS 1170, DIN 1055, JIS C8955:2017,
: International Building Code: IBC 2009,
: California Building Code: CBC 2010;
Bracket Material: AL6005-T5 (surface anodized)
Fastener Material: Zinc-nickel alloy & SUS304
Parts Material: AL6005-T5 (surface anodized)
Bracket Color: Natural or Customized
Warranty: 10 years
