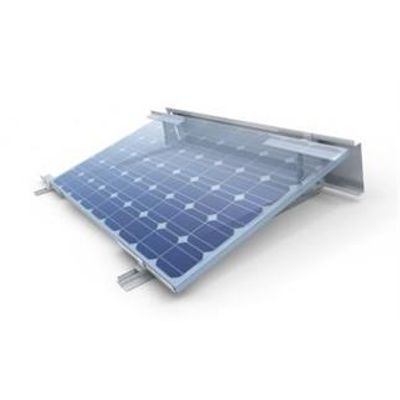

montavent - Model MACH1 South -Flat Roof Mounting System

SHARE

The MACH1 SOUTH by montavent delivers unbeatable efficiency that was designed for industrial installation and therefore offers enormous advantages for any size of project.

Most popular related searches
flat roof mount system
green roof
  • Assembly
    Can be assembled by 1 person
  • Ballast reduction
    Through outstanding aerodynamics
  • Mounting
    Clamping according to module manufacturer
  • Mounting system
    Module assembly with "KLICK" clamp
  • Rear ventilation
    Agressive rear ventilation of entire surface
  • Small parts
    Component parts max. 40 cm long
  • Time-saving
    Time-saving mounting system
  • Unevenness
    Compensates for uneven ground conditions
  • Logistics
    Simplest logistics with euro-pallets
  • Security
    Integrated theft obstacle
  • Application possibilities: flat roofs, incl. green roofs
  • Elevation angle: 10° or 15°
  • Size: all module sizes
  • Frame height: 31 - 50 mm
  • Row separation :: continuous, 1.20 -1.96 m
  • Wind load calculation: according DIN EN 1991-1-4
  • Module grounding: optional, ace. DIN VDE0100
  • Joining means: no roof penetration
  • Material: top-quality aluminium
  • Material protection : UV- + temperature-stable
