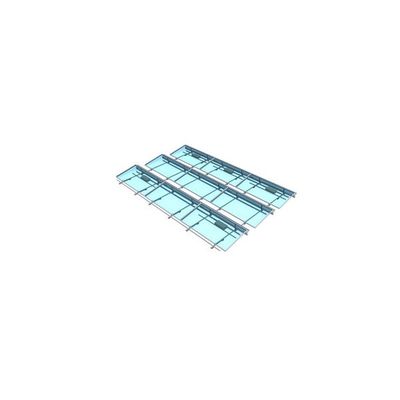

clawFR - Model 10 Degree -Flat Roof Racking

SHARE

Build rate of 280 - 420 modules per day with a 4 person crew (includes full mechanical installation, ballasting and module-to-module wiring). Best row spacing options in the industry with the most walkway (Row Gap) access in the flat roof sector: 11” Row Gap yields an 80% roof coverage ratio. 14” Row Gap yields a 75% roof coverage ratio. 17” Row Gap yields a 70% roof coverage ratio. Best platform load capacity range in the industry  (ability to place as few as zero and as many as 8 captured ballast blocks per module). 2 psf to 12 psf.

Most popular related searches
flat roof mount system
electrical grounding

clawFR Product Platform: transforming the way flat roof is done.

  • Faster build speed, more design options and intelligent O&M features along with the reliability you have come to expect from PanelClaw. clawFR is transforming the way flat roof is done.

Faster Build Speed:

  • Single bolt hardware kit with no loose nuts
  • Tool-less patent pending module attachment means speed
  • Flexible order of operations: build your racking before modules arrive or hang modules as you build. Let site conditions and project conditions dictate optimal order of operations, not the racking
  • Simplified wire management
  • Pre-installed roof protection pads
  • 25% improvement in packing density means fewer pallets

More Design Options:

  • Platform is available in single tilt (5 or 10 degree) and Dual Tilt (10 degree)
  • Best roof coverage ratios at every tilt angle
  • All the strength benefits of a rail based design configurable one module at a time (2 modules at a time for dual tilt)
  • More localized wavy roof flexibility than any rail based design in the market +-3 degrees opposing slopes accommodated
  • Universal, patent pending, module agnostic module attachment method for framed modules
  • Reduced racking overhang increases roof coverage ratio and enhances array aesthetics
  • Available as ballast only, fully attached, or hybrid (based on site requirements and conditions)

Superior O&M Features

  • Best walkway access for every row spacing option makes building and maintaining the system easier than with any other flat roof mounting system
  • Superior corrosion resistance with no price premium (ZAM coating delivers approximately 5x better corrosion resistance than G90)
  • Optimally placed, visible mechanical attachment location for ease of inspection
  • Optimizers mounted under modules with optimizer QR codes visible even after modules are hung
  • 90 degree single module tilt up feature
  • Redundant module level bonding and grounding makes single module replacement simple

Reliability

  • Most rigorously tested flat roof racking platform in the world
  • SEAOC PV1 and PV2 2017 full compliance with peer review
  • ANSI/UL 2703-2015 Listing
    • Class A fire rating for Type I and Type II modules with no additional parts required
    • Module level mechanical load listing for up, down and down-slope
    • Electrical grounding and bonding using a single lug per subarray
  • High strength structural steel components
  • 25 year limited product warranty
