Ensol - Model EM1V/2,0 AL-CU -Flat Solar Collector

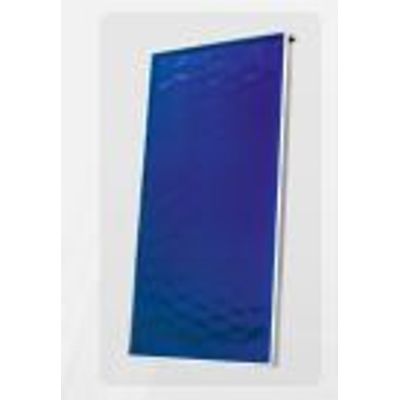

EM1V/2,0 Al - Cu - flat solar collector with double-harp absorber made of copper and aluminium designed for vertical mounting. Collector’s housing construction is based on a rigid frame bent from a special aluminium profile patented by ENSOL company. At the bottom, the housing is closed with an aluminium sheet, whereas the cover is made of a special, high-transmission solar glass. The manner of fixing the glass ensures tightness of housing and minimizes thermal tensions.
The main part of the collector is an absorber, the plate of which is made of aluminium sheet covered with a high selective coat in order to ensure a high level of solar radiation absorption, which results in obtaining high efficiency of the energy conversion process. The absorber’s plate is connected by means of laser welding with the copper tubes system, in which the medium circulates. Heat losses were minimized by application of lower and lateral insulation made of mineral wool of low heat conduction.
Specially designed assembly sets made of stainless steel are used for troublefree and secure mounting of collectors to roof constructions with different angles inclination.
Flat collectors with prismatic glass have certificate of compatibility with DIN EN ISO 9806:2014-03 norm conducted by TÜV Rheinland Immissionsschutz und Energiesysteme GmbH and the Solar Keymark certificate.
- Width (A) 1006 mm
- Height (b) 1988 mm
- Depth (C) 85 mm
- Weight (m) 40 kg
- Surface (S) 2,0 m2
- Optical efficiency (ηo) 78,8 %
- Coefficient (a1) 3,485 W/(m2K)
- Coefficient (a2) 0,017 W/(m2K2)
- Connection: Cu pipe (⌀) 22 mm
- Casing alu-profile
- Kind of an absorber metal sheet Al 0,5 mm
- Selective layer high selective layer
- Technology laser welding
- Absorption coefficient (α) 95 %
- Emission coefficient (ε) 5 %
- Width (a) 964 mm
- Height (b) 1946 mm
- Absorber surface (Sb) 1,876 m2
- Active surface (Sn) 1,876 m2
- Amount of fluid (V) 1,8 dm3
- Balance temperature (Tr) 208 ⁰C
- Guaranteed minimal heat yield 525 kWh/m2*year
- Flow recommended 60-90l/h
- Flow allowed 50-220l/h
- Insulation mineral wool
- Conduction coefficient (λ) 0,035 W/mK
- Thickness of the insulation layer bottom (d) 40 mm
- Thickness of the insulation layer side (d) 8 mm
