Ensol - Model ES2V/2,0S-AL -Flat Solar Collector

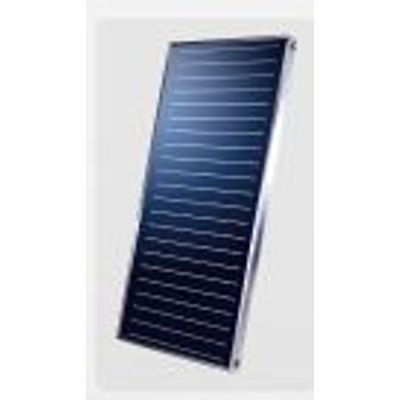

ES2V/2,0 AL – flat solar collector with meander absorber, made completely of aluminium, designed for vertical monunting. Ensol solar collector ES2V/2,0 AL is designed for changing energy of solar radiation into useful thermal energy used for providing warm service water, heating swimming-pools or supporting a heat source in a heating system. Collector’s housing construction is based on a rigid frame bent from a special aluminium profile patented by ENSOL company. At the bottom the housing is closed with aluminium sheet, whereas the cover is made of a special, high-transmission solar glass. The manner of fixing the glass ensures tightness of housing and minimizes thermal tensions.
The main part of the collector is an absorber, the plate of which is made of aluminium sheet covered with a high selective coat in order to ensure a high level of solar radiation absorption, which results in obtaining high efficiency of the energy conversion process. The absorber’s plate is connected by means of ultrasonic welding with the aluminium tubes system, in which the medium circulates.
Heat losses were minimized by application of lower and lateral insulation made of mineral wool of low heat conduction. Specially designed assembly sets made of stainless steel are used for trouble-free and secure mounting of collectors to roof constructions with different angles inclination. Aluminium collector ENSOL ES2V/2,0 AL is intended for use in installations made in the technology of flexible corrugated hose made of acid- resistant steel.
Flat collectors with prismatic glass have certificate of compatibility with DIN EN 12975-2:2006-06 normconducted by TÜV Rheinland Immissionsschutz und Energiesysteme GmbH and Solar Keymark certificate.
- Width (A) 1006 mm
- Height (b) 2007 mm
- Depth (C) 85 mm
- Weight (m) 38 kg
- Surface (S) 2,02 m2
- Optical efficiency (ηo) 81 %
- Coefficient (a1) 3,442 W/(m2K)
- Coefficient (a2) 0,016 W/(m2K)
- Incidence angle modifier (IAM) 0,870
- Connection: Cu pipe (⌀) 22 mm
- Casing alu-profile
- Kind of an absorber Metal sheet AL thickness 0,3 mm
- Selective layer high selective layer
- Technology Ultrasonic welding
- Absorption coefficient (α) 95 %
- Emission coefficient (ε) 5 %
- Width (a) 953 mm
- Height (b) 1955 mm
- Absorber surface (Sb) 1,86 m2
- Active surface (Sn) 1,86 m2
- Amount of fluid (V) 1,8 dm3
- Balance temperature (Tr) 208 oC
- Guaranteed minimal heat yield 525 kWh/m2/year
- Flow recommended 40 l/h
- Insulation Rock wool
- Conduction coefficient (λ) 0,035 W/mK
- Thickness of the insulation layer bottom (d) 40 mm
- Thickness of the insulation layer side (d) 8 mm
