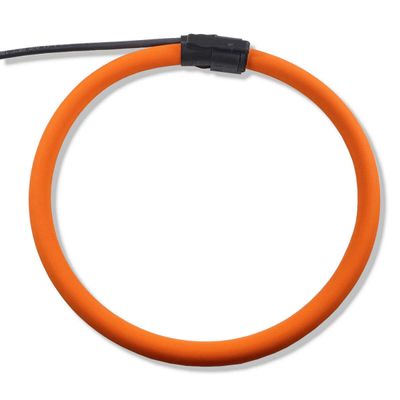

Model AcuCT - Flex Current Transformers

Premium Rogowski coil current transformers are available in a variety of sizes and input ranges. High specification line of flexible AC current transformers for power metering, power quality, and general use when space is limited.

Most popular related searches

current transformer

power quality

High accuracy for demanding applications
Wide frequency range means excellent choice for harmonics and power quality
Wide current input range from 5A – 50,000A AC
Choice of 16″, 24″, 36″ or 47″ length.
No additional power supply is needed when used with certain meters.

Rope Length

16" Rogowski Coil, 24" Rogowski Coil, 36" Rogowski Coil, 47" Rogowski Coil

Amp Rating

5A – 1200A Rogowski Coil CT, 12.5A – 3000A Rogowski Coil CT, 25A – 6000A Rogowski Coil CT, 50A – 12000A Rogowski Coil CT, 250A – 50000A Rogowski Coil CT

Model AcuCT - Flex Current Transformers

Key Features

Additional information
